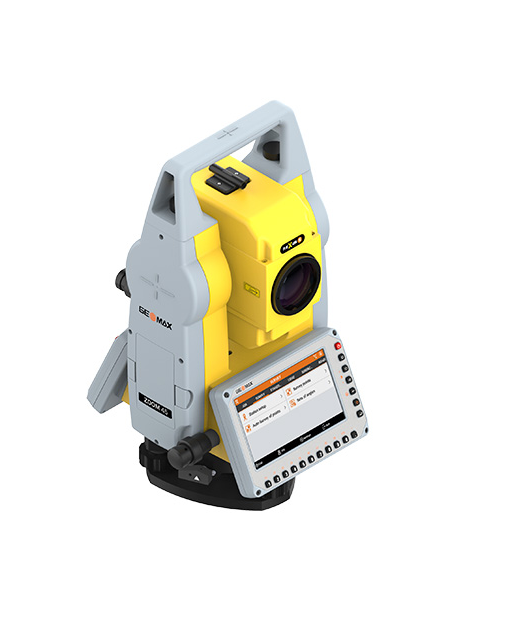

GEOMAX Zoom45 ສະຖານີລວມຄູ່ມື (2” (0.6 mgon))
ANGLE MEASUREMENTS
Accuracy: 2” (0.6 mgon)
Display resolution: 0.1”
Method: Absolute, continuous, diametrical
Compensation: Quadruple axis
TILT
Compensation: Dual axis
Compensation range: ± 8’
DISTANCE MEASUREMENTS (PRISM)
Range: 5000 m
Accuracy: 2 mm + 2 ppm
Time (Fast/Standard): 1.1 sec / 1.4 sec
DISTANCE MEASUREMENTS (NON-PRISM)
Range: 500 m
Accuracy: 3 mm + 2 ppm*
Time (Fast/Standard): 1.1 sec / 1.3 sec
TELESCOPE
Magnification: 28x
Field of View: 1°30’
Reticle Illumination: Yes, adjustable brightness
Laser Pointer: Laser dot size 12 x 24 mm @ 50 m
PHYSICAL SPECIFICATIONS
Weight: 5.1 kg (w/o battery and tribrach)
Operating- / storage temperature
-20° C to 50° C /
-30° C to 55° C
Protection class IP55 dust and waterproof rating
Humidity: 95%, non-condensing
POWER SUPPLY
Internal battery: Removable Li-Ion 6.4 Ah / 7.4 V
Operating time: Up to 8 h **
INTERFACE
Keyboard: Full numeric; 18 keys; including 10 function keys; Face I standard, face II optional
Display: 5” WVGA 800 x 480 pixel, colour and touch with LED backlight
Ports USB mini, USB host, Bluetooth and WLAN
SYSTEM AND DATA
Operating System Android 11
Memory (RAM) 4 GB
Internal memory 32 GB / 16 GB for user data
Data Transfer USB device, Bluetooth, WLAN
LASER PLUMMET
Type Laser point, adjustable brightness
Accuracy 1.5 mm at 1.5 m instrument heigh
