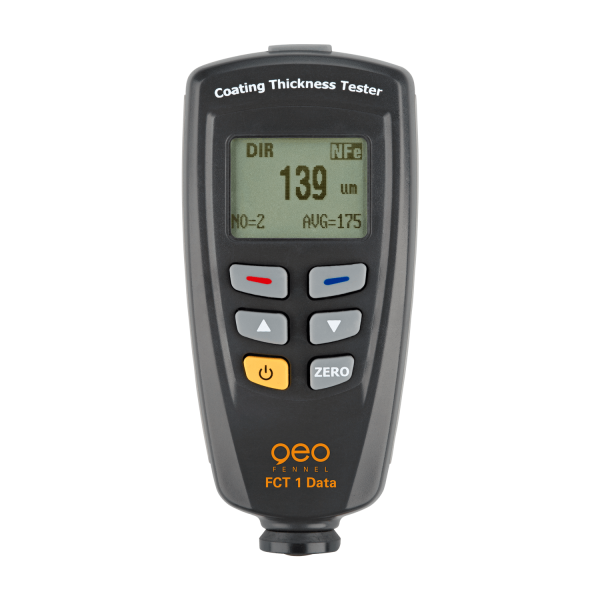

GEO-Fennel FCT 1 Data ເຄື່ອງທົດສອບຄວາມຫນາຂອງການເຄືອບ (0 – 1250 µm)
Probe F
Working principle: Magnetic induction
Measuring range: 0 – 1250 µm ; 0 – 49.21 mils
Guaranteed tolerance (of reading): 0 – 850 µm (± 3 % +1 µm); 0 – 33.46 mils(± 3 % +0.039 mils); 850 – 1250 µm (± 5 %); 33.46 – 49.21 mils (± 5 %)
Resolution 0 – 50 µm: 0.1 µm
Resolution 0 – 1.968 mils: 0.001 mils
Diameter of minimum area: 7 mm
Basic thickness of material: 0.5 mm
Working temperature: 0 °C to +40 °C
Working relative humidity: 20 % ~ 90 %
Power supply: 20 % ~ 90 %
Size: 20 % ~ 90 %
Weight: 20 % ~ 90 %
Probe N
Working principle: Eddy current principle
Measuring range: 0 – 1250 µm ; 0 – 49.21 mils
Guaranteed tolerance (of reading): 0 – 850 µm (± 3 % +1.5 µm); 0 – 33.46 mils (± 3 % +0.059 mils); 850 – 1250 µm (± 5 %); 33.46 – 49.21 mils (± 5 %)
Resolution 0 – 50 µm: 0.1 µm
Resolution 0 – 1.968 mils: 0.001 mils
Diameter of minimum area: 5 mm
Basic thickness of material: 0.3 mm
Working temperature: 0 °C to +40 °C
Working relative humidity: 20 % ~ 90 %
Power supply: 20 % ~ 90 %
Size: 20 % ~ 90 %
Weight:20 % ~ 90 %
