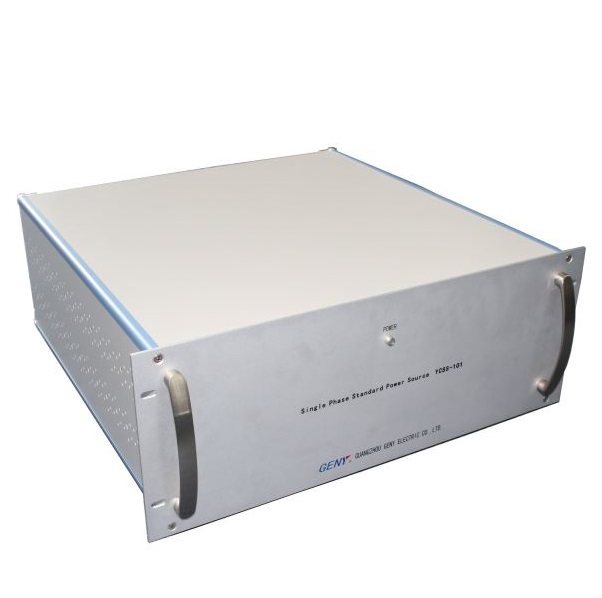

GENY YCSS101 ເຄື່ອງ Calibrator ໄລຍະດຽວແບບພົກພາ (0V-480V, 1mA-120A)

Voltage

- Test voltage output: 0V-480V

- Harmonics generation: free programmable, supporting ODD / EVEN according IEC standards

- Power of the voltage output: Max. 25VA

- Resolution: 1mV

- Setting accuracy: 0.05%

- Stability: 0.003%/h (integration time 150s)

Current

- Test current output: 1mA-100A

- Power of the current output: Max 100VA

- Resolution: 0.002mA

- Setting accuracy: 0.05 at 0.1A – 100A

- Stability: 0.003% / h (integration time 150s)

- Distortion factor: <0.2% for linear resistance load

- Harmonics: 2nd – 21st free programmable, supporting ODD / EVEN harmonic generation

Phase angle

- Setting accuracy: 0.005º

- Range: 0º - 360º

- Resolution: 0.001º

Frequency

- Range: 45Hz – 65Hz

- Resolution: 0.0001 Hz

Pulse output: High frequency output: 1.5625 x 106 Hz

Other

- Dimensions(WxHxD): 432x220x260mm

- Weight(kg): 18
