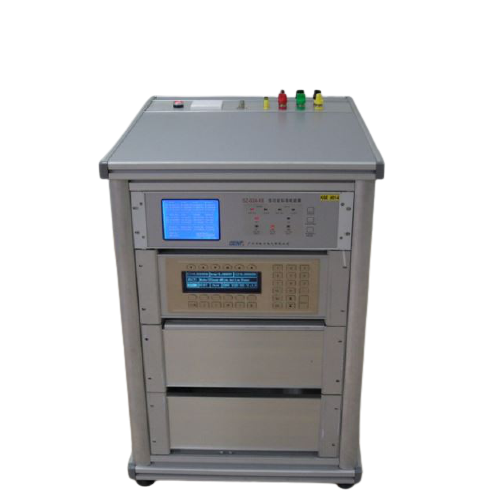

GENY YCSS-103 ອຸປະກອນທົດສອບວັດ Portable ສາມເຟດ (0V-480V, 1mA-120A)

Voltage range (4 physical range): 0~480V

Voltage output accuracy: Class 0.02 (50~400V)

Resolution of output voltage: 1mV

Minimum voltage adjustment value: 1mV

Maximum voltage output power: 25VA

Current range (6 physical range): 0~120A

Current output accuracy: Class 0.02 (0.1~100A)

Harmonic phase position range: 0~360°

Accuracy of harmonic phase position: 0.1°

Resolution of output current: 0.2mA

Minimum voltage adjustment value: 0.2mA

Maximum current output power: 100VA

Phase position range: 0~360°

Accuracy of phase position: 0.005°

Resolution of phase position: 0.001°

Minimum phase position adjustment value: 0.001°

Frequency range: 45~65Hz

Output frequency accuracy(power frequency): ≤0.01%

Resolution of output frequency: 0.0001Hz

Output power: ≤0.01%
