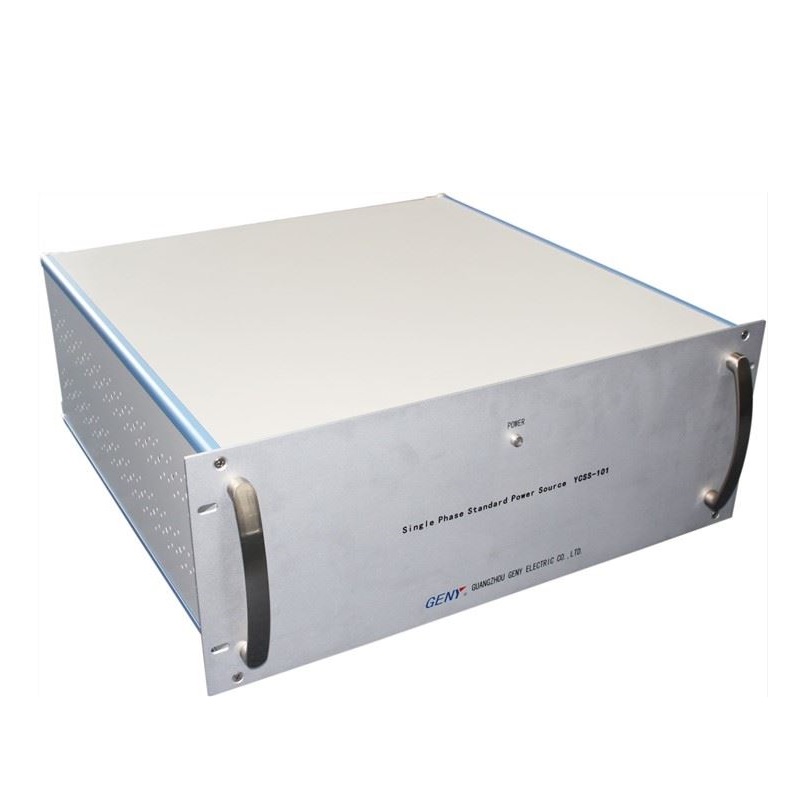

GENY YCSS-101 Portable Single Phase ມາດຕະຖານແຫຼ່ງພະລັງງານ (0V-480V, 1mA-120A)

Voltage

- Test voltage output: 0V-480V

- Power of the voltage output: Max.25VA

- Resolution: 1mV

- Setting accuracy: 0.05% at 50-400V

- Stability: 0.03%/h(intergration time 150s)

- Distortion factor: <0.2%for linear resistance load

- Harmonics: 2nd-41st free programmable

Current

- Test current output: 1mA-120A

- Power of the voltage output: Max.120VA

- Resolution: 0.2mA

- Setting accuracy: 0.05% at to 0.1A-120A

- Harmonics: 2nd-21st free programmable

Phase angle

- Range: 0°-360°

- Resolution: 0.001°

- Setting accuracy: 0.005°

Frequency

- Range: 45Hz-65Hz

- Resolution: 0.0001Hz

Pulse output

- High frequency output: >20A FH=107;>2A FH=108;>0.2A FH=109

Pulse Input

- Input channel: 2

- Input frequency: Max.100kHz
