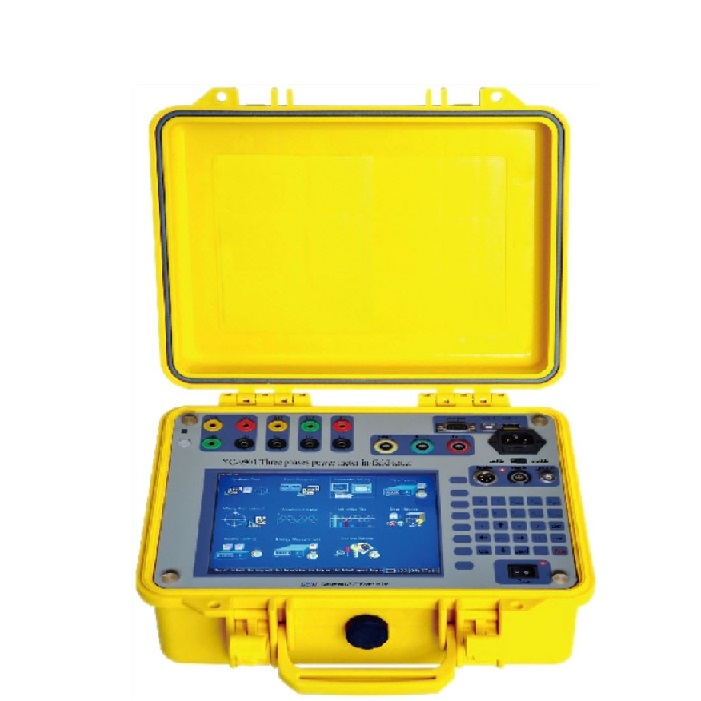

GENY YC-9901 ເຄື່ອງວັດແທກມາດຕະຖານດຽວ/ສາມເຟດ (30-480V, 0.2-12A)

Test voltage

- Range: 30V-480V

- Error: ±0.02%

- Harmonic: 2nd-61st

Test current

- Range(direct connection): 0.2-12A

- Range(clamp CT): 100A; 5A,500A,1000A,2000A (option)

- Error(direct connection): ±0.02%

- Error(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Harmonic: 2nd-61st

Power measure error

- Active power(direct connection): ±0.02%

- Active power(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Reactive power(direct): ±0.1%

- Reactive power(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

Energy measure error

- Active energy(direct): ±0.02%

- Active energy(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

- Reactive energy(direct): ±0.1%

- Reactive energy(clamp CT): ±0.2%(5A,100A) ±0.5%(other)

Phase angle

- Range: 0°-360°

- Error: ±0.05°

Frequency

- Range: 45Hz-65Hz

Voltage supply: 55-480V,50/60Hz

Dimensions(WxHxD): 323x275x135

Weight(kg): 4.25kg
