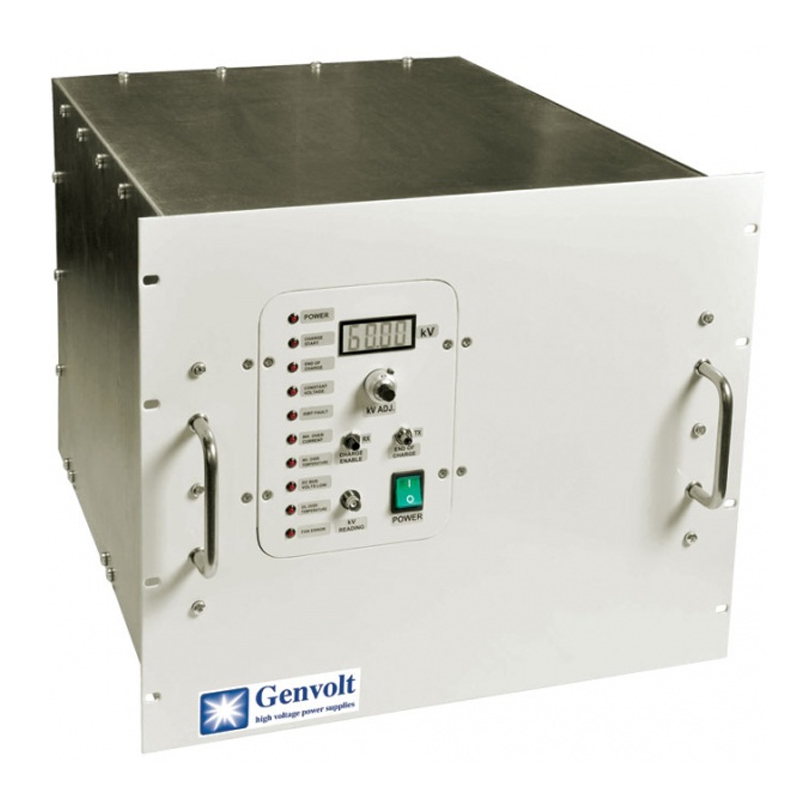

Genvolt Titan (60kV) High Voltage Power Supply
ຜູ້ຜະລິດ: Genvolt Model: Titan (60kV) ທີ່ມາ: United Kingdom ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Input Power:
Voltage Source: 415Vac
Output Power:
Average Power: 45000J/sec
Output Voltage: 0 to 60kV
Output Current: 1.65A maximum
Polarity: Positive or negative
Repetition Rate: 250Hz maximum
Duty Cycle: 2 seconds on-load by 2 minutes off-load operation
Guard Band Protection: 200µs fixed after load discharged
HV Connector: Proprietary connector
HV Cable: Mating cable and connector supplied with PSU.
Cable length: 3 metres detachable
Charge Enable: Fibre optic input, active light on
Voltage Program: Adjusted by 10 turn potentiometer with a DVM reading on front panel.
Voltage Monitor: 0 to 10V represents 0 to 60kV output through BNC connector
End of Charge: Fibre optic output, active light on
Operation Temperature: 10 to 40°C
Storage Temperature: -10 to 60°C
Humidity: 0-90% (non-condensing)
Cooling: Forced air
Height: 9U
Depth: 560mm
Width: 19” Rack 605mm
Weight: 70kg
