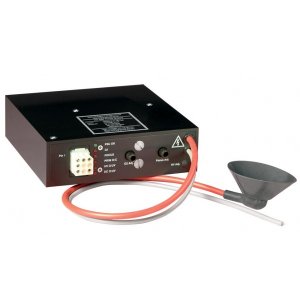

Genvolt CR25 Cathode Ray Tube Power Supply (30kV, 30W)

Input Voltage Range: 34-42V

Max. Input Voltage: 45V

Full Load Input Current: 1.3A nominal

Anode Output

Output Voltage Range: +20kV to +28kV

Output Current: 1.3mA

Control of Output: Internal single turn potentiometer

Output Ripple: 4.0V peak to peak

Line Regulation: 0.01%

Load Regulation Static: 0.01%

Dynamic: 0.1%

Temperature Coefficient: 200 ppm per °C max.
