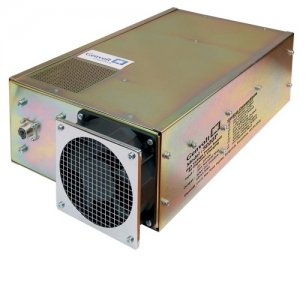

Genvolt 5040 High Voltage Module (50kV )

Output Voltage: 50kV

Output Current: 40mA

Duty Cycle: low (<10%)

Input Voltage: For 1kJ/sec 2kW pk operation, a 100-140VDC supply is required.

(However, for 500J/sec 1kW pk, operation from 20-48V is available).

Input Current: Less than 25A maximum

Environment: 0 to 50°C ambient. Non-condensing atmosphere.

Weight: 13kg

Stability, Ripple, etc: maximum PRF of 100Hz.

Control Interface: Active low HV ON input. 0-10V HV and current limit programming,

OC-TTL constant voltage/current outputs, 0-10V HV and current monitor outputs.
