Specifications
Sample Size: 20L-40L
Cooling: Jacketed
Dimensions: 30cm×25cm×25cm
Weight: 120kg
Min. Sample Size: 2L
Application: Liposome formulation up to production scale
Max. Pressure: 1,000 psi-5,000 psi
Temp. Limit: 80ºC (176ºF)
Power Type: High pressure pump or high pressure homogenizer
Nano-membrane: Track-etched membrane
Cleaning: Flush to clean/CIP/SIP
Sterilization: Whole unit autoclavable
Standard Features
Parts
1) Liposome Online Extruder
2) 10 pieces of 100nm membrane (sample pack)
Filter Support: Jacketed filter support with pagoda inlet and outlet
Inlet Type: 3/8" high pressure coupling
Outlet Type: 3/8" high pressure coupling
Handle: Handle for GOE-8L and GOE-20L
Nano Membrane: 100nm track-etched polycarbonate membrane
Compatibility: Some Parts are compatible with high pressure fittings
Product Material: 316L stainless steel, viton
Material Standard: Sanitary grade; compliant with FDA and GMP sanitary standards
Warranty: 1 year against any manufacturing defects
Description:

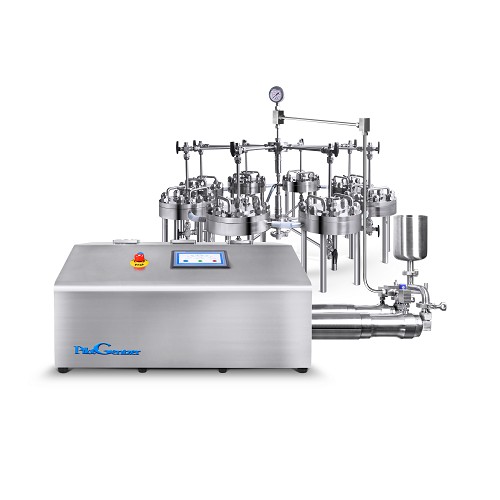

Genizer Multi Online Liposome Extruders System can be connected with a sanitary pump or high pressure homogenizer and are temperature-controlled, from pilot testing to manufacturing production of pharmaceutical liposomes such as anti-cancer drugs. Homogenous samples can be produced quickly and easily in minutes; typically 3-5 passes are sufficient to produce a sample with uniform liposome size. The Genizer Multi Online Liposome Extruders System is designed to generate homogeneous unilamellar liposomes and lipopolyplex. Extrusion is a one-step procedure that produces liposomes by forcing lipid suspensions of drug, protein or gene through track-etched filters of defined pore size. The Multi Online Extruders System offers minimal dead volume, is easy to clean, suitable for sterilization and compliant with FDA and GMP sanitary standards in pharmaceuticals.
Application:
Liposome extrusion
Performance:
Minimal dead volume
The Multi Online Extruders System can control the temperature of the extrusion while producing up to 200L yield of liposome per batch.
Datasheet
