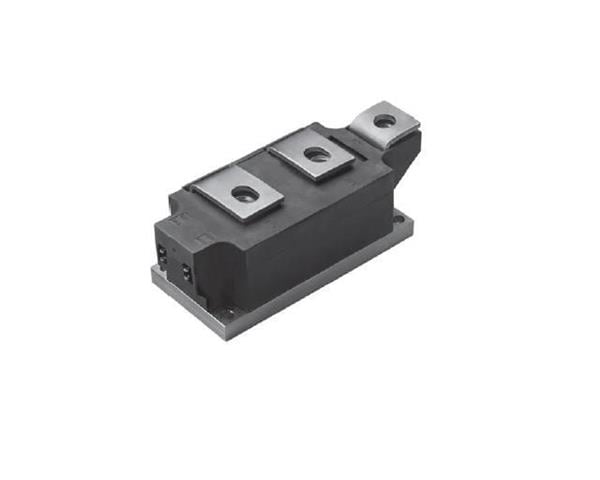

Vishay General Semiconductor VS-VSKL500-16PBF ໂມດູນ SCR 1600ໂວລແບບ 500ແອມ

Technology: Si

Unit Weight: 500 g

Circuit Type: Thyristors / Diodes

Current Rating: 500 A

Mounting Style: Screw Mount

On-State Voltage: 1.5 V

Holding Current Ih Max: 500 mA

Breakover Current IBO Max: 18.7 kA

Gate Trigger Current - Igt: 200 mA

Gate Trigger Voltage - Vgt: 3 V

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C

On-State RMS Current - It RMS: 785 A

Non Repetitive On-State Current: 17.8 kA

Off-State Leakage Current @ VDRM IDRM: 100 mA

Rated Repetitive Off-State Voltage VDRM: 1.6 kV
