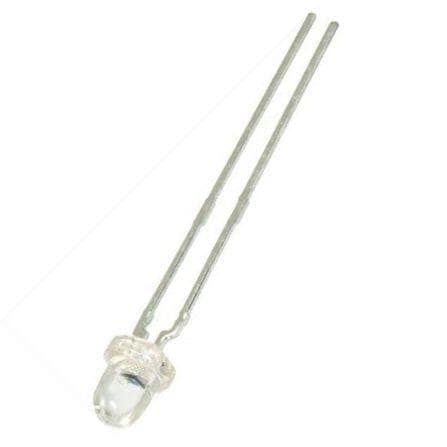

Vishay General Semiconductor TEFD4300F ຊິລິກອນ PIN ໂຟໂຕໂດໄອດ T-1 770 ຫາ 1070nm +/-20 ອົງສາ

Width: 3 mm

Height: 4.5 mm

Length: 3.2 mm

Fall Time: 100 ns

Rise Time: 100 ns

Dark Current: 150 pA

Photocurrent: 17 uA

Mounting Style: Through Hole

Peak Wavelength: 950 nm

If - Forward Current: 50 mA

Vf - Forward Voltage: 1 V

Vr - Reverse Voltage: 60 V

Pd - Power Dissipation: 215 mW

Half Intensity Angle Degrees: 20 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
