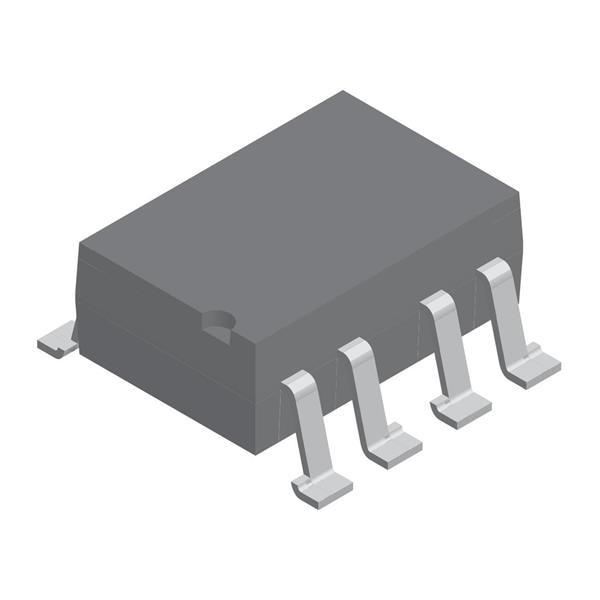

Vishay General Semiconductor MCT6-X009T Transistor Output Optocouplers Dual Ch Phototrnstr CTR>20%

Output Type: NPN Phototransistor

Unit Weight: 616.333 mg

Mounting Style: SMD/SMT

Isolation Voltage: 5300 Vrms

Number of Channels: 2 Channel

If - Forward Current: 60 mA

Vf - Forward Voltage: 1.5 V

Vr - Reverse Voltage: 3 V

Current Transfer Ratio: 20 %

Pd - Power Dissipation: 400 mW

Maximum Collector Current: 30 mA

Current Transfer Ratio - Min: 20 %

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 30 V

Maximum Collector Emitter Saturation Voltage: 400 mV
