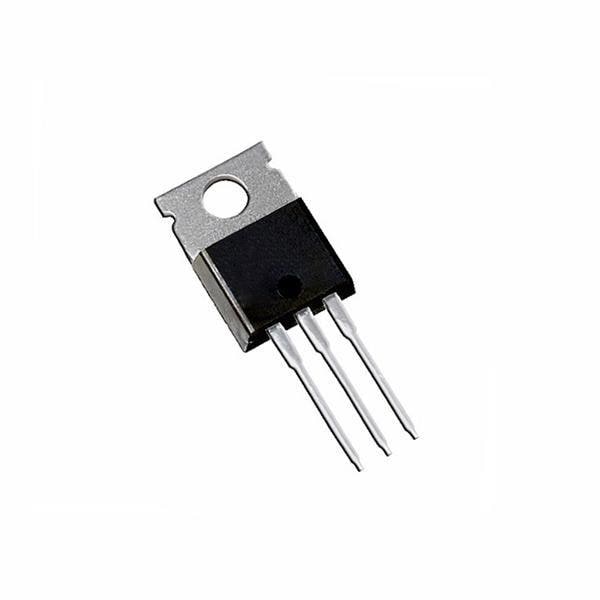

Vishay General Semiconductor MBR2560CT-E3/45 ຕົວຄວບຄຸມອຸດົມສະພາບ Schottky 25 ແອມ 60 ໂວລຕ

Width: 4.7 mm

Height: 8.89 mm

Length: 10.54 mm

Technology: Si

Unit Weight: 1.850 g

Configuration: Dual Anode Common Cathode

Mounting Style: Through Hole

Termination Style: Through Hole

If - Forward Current: 30 A

Ir - Reverse Current: 200 uA

Vf - Forward Voltage: 820 mV

Ifsm - Forward Surge Current: 150 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

Vrrm - Repetitive Reverse Voltage: 60 V
