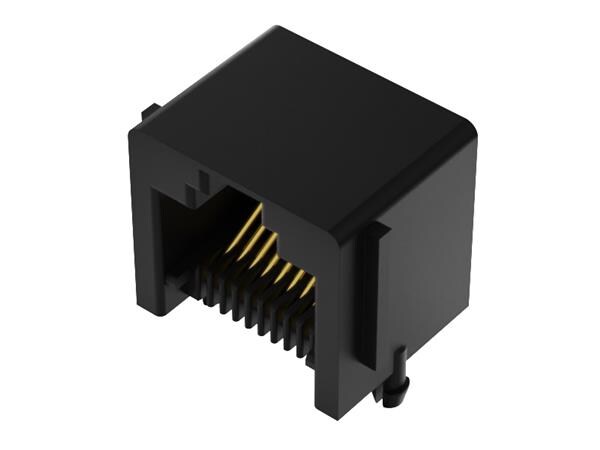

GCT (Global Connector Technology) MJ3420-11-1-2 Modular MJ 10P10C ຮອຍຢ່າງຮອງ 6u" ຜ່ານຮ່ອງ, ມີການຢຸດແຜ່ນ

Color: Black

Pitch: 1.02 mm

Gender: Jack (Female)

Shielding: Unshielded

USOC Codes: RJ50

Configuration: 1x1

Mating Cycles: 750 Cycles

Mounting Type: PCB Mount

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Mounting Direction: Horizontal

Number of Contacts: 10 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Performance Category: Cat 3

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 10P10C
