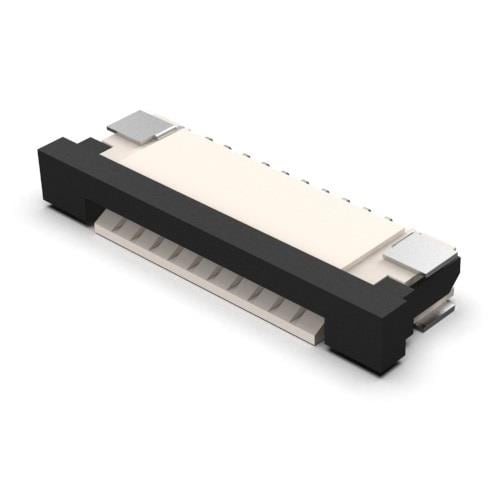

GCT (Global Connector Technology) FFC3B07-10-T ບອດມາວນ 10W, 1.0mm FFC Conn, R/A,Bot Cont, Slide, H2.5mm,SMT,Tin,T&R

Pitch: 1 mm

Unit Weight: 510 mg

Housing Color: Natural

Accessory Type: Slide Actuator

Actuation Type: Slide

Current Rating: 400 mA

Mounting Angle: Right Angle

Mounting Style: SMD/SMT

Voltage Rating: 50 VAC, 50 VDC

Contact Plating: Tin

Contact Location: Bottom Contact

Contact Material: Phosphor Bronze

Housing Material: Thermoplastic (TP)

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Insulation Resistance: 50 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
