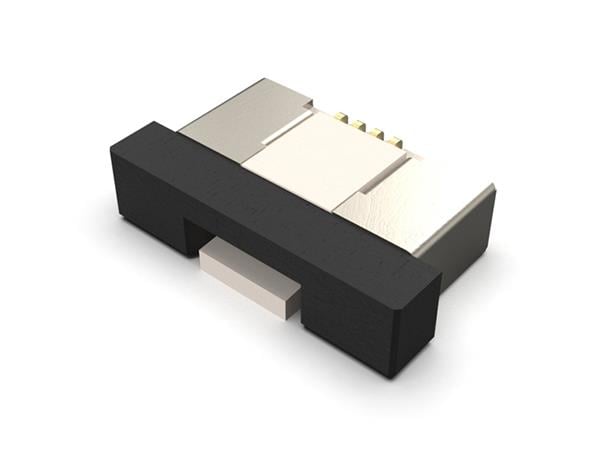

GCT (Global Connector Technology) FFC2B21-14-T ບອດມາວນ 14W,0.5mm FFC Con,R/A,Bot Cont,Slide Lock,H2.0mm,Tin,SMT,T&R

Pitch: 0.5 mm

Unit Weight: 321.250 mg

Housing Color: Natural

Accessory Type: Slide Actuator

Actuation Type: Slide

Current Rating: 400 mA

Mounting Angle: Right Angle

Mounting Style: SMD/SMT

Voltage Rating: 50 VAC, 50 VDC

Contact Plating: Tin

Contact Location: Bottom Contact

Contact Material: Phosphor Bronze

Housing Material: Thermoplastic (TP)

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 14 Position

Insulation Resistance: 50 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
