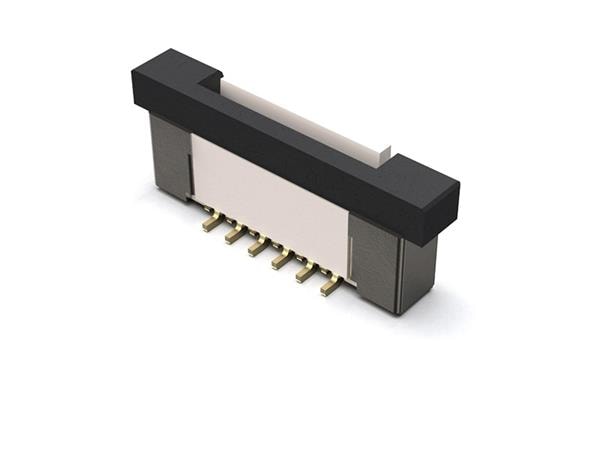

GCT (Global Connector Technology) FFC2A33-04-T-R ບອດມາວນ 04W, 0.5MM, FFC Con, ແຂນຕັ້ງ, H4.5mm, SMT, ບ້ານ, T&R

Pitch: 0.5 mm

Accessory Type: Slide Actuator

Current Rating: 200 mA

Mounting Angle: Vertical

Mounting Style: SMD/SMT

Voltage Rating: 30 VAC, 30 VDC

Contact Plating: Tin

Contact Location: Side Contact

Contact Material: Phosphor Bronze

Housing Material: Polyamide (PA)

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Insulation Resistance: 50 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
