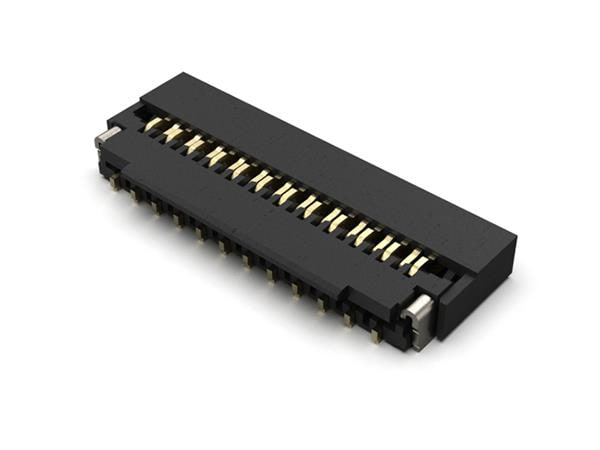

GCT (Global Connector Technology) FFC1B06-51-G ບອດມາວນ 51W, 0.3mm FFC Con,R/A,Bott Cont, Fr/Flp,H1.0mm,Gld,SMT,T&R

Pitch: 0.3 mm

Unit Weight: 520 mg

Housing Color: Natural

Accessory Type: Front Flip Actuator

Actuation Type: Front Flip

Current Rating: 200 mA

Mounting Angle: Right Angle

Mounting Style: SMD/SMT

Voltage Rating: 30 VAC, 30 VDC

Contact Plating: Gold

Contact Location: Bottom Contact

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: SMD/SMT

Flammability Rating: UL 94 V-0

Number of Positions: 51 Position

Insulation Resistance: 50 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
