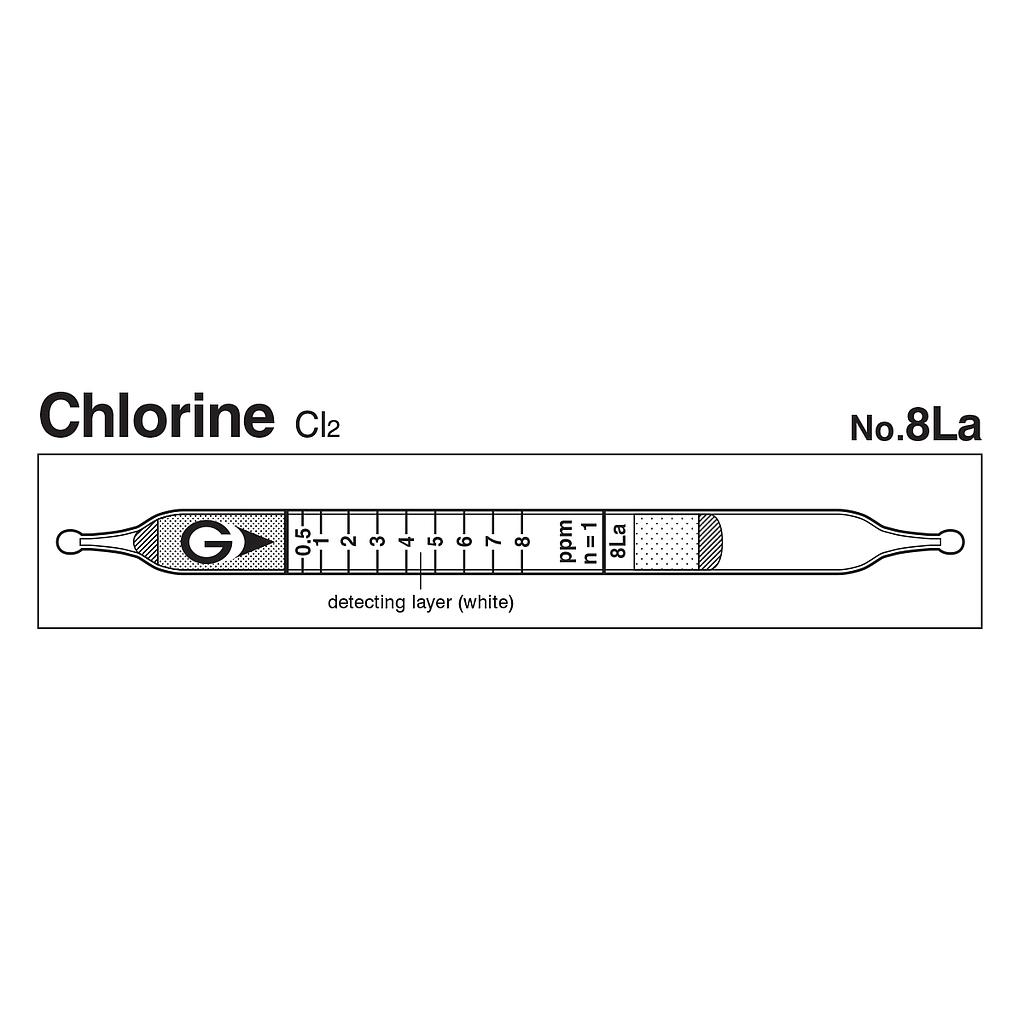

Gastec 8La Quick-measuring Detector tubes Chlorine Cl2 (0.1~16ppm)

Name: Gastec 8La Quick-measuring Detector tubes Chlorine Cl2 (0.1~16ppm)
Brand: Gastec

ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

Model8La

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Indicator: 0.5 to 8 ppm
Measuring Range:
+ 0.1 to 0.5 ppm, Number of Pump Strokes 2 to 5
+ 0.5 to 8 ppm, Number of Pump Strokes 1
+ 8 to 16 ppm, Number of Pump Strokes 1/2
Sampling Time: 1 minutes per pump stroke
Colour Change: White → Pale pink
Reaction Principle: Cl2 + o - Tolidine → Pale pink products
Coefficient of Variation: 10% (for 0.5 to 2 ppm), 5% (for 2 to 8 ppm)
Nr. of tests: 10
Pump: GV-100S/110S

Catalog

Manual

Performance

Measuring Range

0.1 to 0.5 ppm

0.5 to 8 ppm

8 to 16 ppm

Number of Pump Strokes

2 to 5

1/2

Correction Factor

1/2 to 1/5

Sampling Time

1 minute per pump stroke

Detecting Limit

0.05 ppm (n=5)

Colour Change

White → Pale pink

Reaction Principle

Cl2 + o - Tolidine → Pale pink products

Coefficient of Variation

10% (for 0.5 to 2 ppm), 5% (for 2 to 8 ppm)

Shelf Life

3 Years

Corrections for temperature & humidity

Unnecessary

Store the tubes at cool and dark place.

Possible coexisting substances and their interferences (NOTE)

Substance

Concentration

Interference

Change colour by itself to

Nitric oxide	+	Pale pink
Ozone	+	Pale pink
Nitrogen dioxide	+	Pale pink
Chlorine dioxide	+	Pale pink
Bromine, Iodine	+	Pale pinky

Other substance measurable with this detector tube

Substance

Correction Factor

No. of pump strokes

Measuring Range

Bromine	0.1	4	0.05 to 0.8 ppm
Chlorine dioxide	0.6	1	0.3 to 4.8 ppm

Calibration gas generation

Permeation tube method

TLV-TWA	TLV-STEL	Explosive range
0.5 ppm	1 ppm	-
