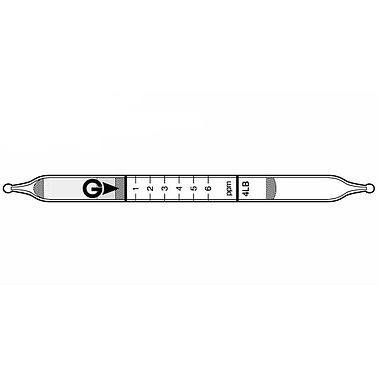

Gastec 4LB Quick-measuring Detector tubes Hydrogen sulphide H2S (0.5-12ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model4LB
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 1 to 6 ppm
Measuring Range:
+ 0.5 to 1 ppm, Number of Pump Strokes 2
+ 1 to 6 ppm, Number of Pump Strokes 1
+ 6 to 12 ppm, Number of Pump Strokes 1/2
Sampling Time: 1 minutes per pump stroke
Colour Change: Yellow → Pink
Coefficient of Variation: 5% (for 1 to 6 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 1 minute per pump stroke | |||
| Detecting Limit | 0.07 ppm (n=2) | |||
| Colour Change | Yellow → Pink | |||
| Reaction Principle |
Hydrogen Sulphide reacts with the reagent to form intermediate material which stains indicator pink |
|||
| Coefficient of Variation | 5% (for 1 to 6 ppm) | |||
| Shelf Life | 2 Years | |||
| Corrections for temperature & humidity | Unnecessary |
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Ammonia |  2.3 ppm |
 |
No discolouration |
| Ethyl Mercaptan | 0.5 ppm |
+ | Pink at 0.4 ppm |
| Hydrogen Chloride | 4.5 ppm |
+ | Pink at 4.0 ppm |
| Hydrogen Cyanide | 0.1 ppm |
+ | Pink at 0.1 ppm |
| Nitric Acid | 6.0 ppm |
+ | Pink at 5.0 ppm |
| Sulphur Dioxide | 1.0 ppm |
+ | Pale pink at 0.7 ppm |
| Nitrogen Dioxide | 3.5 ppm |
|
Pink at 8.0 ppm |
| Hydrogen Fluoride | 13.0 ppm |
+ | Pink at 10.0 ppm |
| Calibration gas generation | Permeation tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 1 ppm (2014) | 5 ppm (2014) | 4.0 to 44% |
