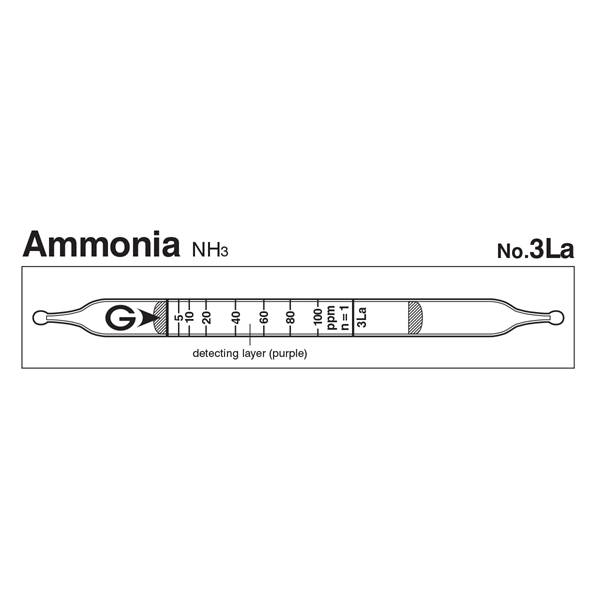

Gastec 3La ທໍ່ເຄື່ອງກວດຈັບດ່ວນວັດແທກແອມໂມເນຍ NH3

Name: Gastec 3La ທໍ່ເຄື່ອງກວດຈັບດ່ວນວັດແທກແອມໂມເນຍ NH3
Brand: Gastec

ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

Model3La

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Indicator: 5 to 100 ppm
Measuring Range:
+ 2.5 to 5 ppm, Number of Pump Strokes 2
+ 5 to 100 ppm, Number of Pump Strokes 1
+ 100 to 200 ppm, Number of Pump Strokes 1/2
Sampling Time: 30 seconds per pump stroke
Colour Change: Purple → Yellow
Reaction Principle: 3NH3 + H3PO4 → (NH4)3PO4
Coefficient of Variation: 10% (for 5 to 20 ppm), 5% (for 20 to 100 ppm)
Nr. of tests: 10
Pump: GV-100S/110S

Catalog

Manual

Performance

Measuring Range

2.5 to 5 ppm

5 to 100 ppm

100 to 200 ppm

Number of Pump Strokes

1/2

Correction Factor

1/2

Sampling Time

30 seconds per pump stroke

Detecting Limit

0.5 ppm (n=2)

Colour Change

Purple → Yellow

Reaction Principle

3NH3 + H3PO4 → (NH4)3PO4

Coefficient of Variation

10% (for 5 to 20 ppm), 5% (for 20 to 100 ppm)

Shelf Life

3 Years

Corrections for temperature & humidity

Temperature correction is necessary

Store the tubes at cool and dark place.

Possible coexisting substances and their interferences (NOTE)

Substance

Concentration

Interference

Change colour by itself to

Carbon dioxide	1%		No
Hydrazine		+	Yellow
Amines	1/15	+	Yellow (5 ppm)

Calibration gas generation

Permeation tube method

TLV-TWA	TLV-STEL	Explosive range
25 ppm (2014)	35 ppm (2014)	15 to 28%
