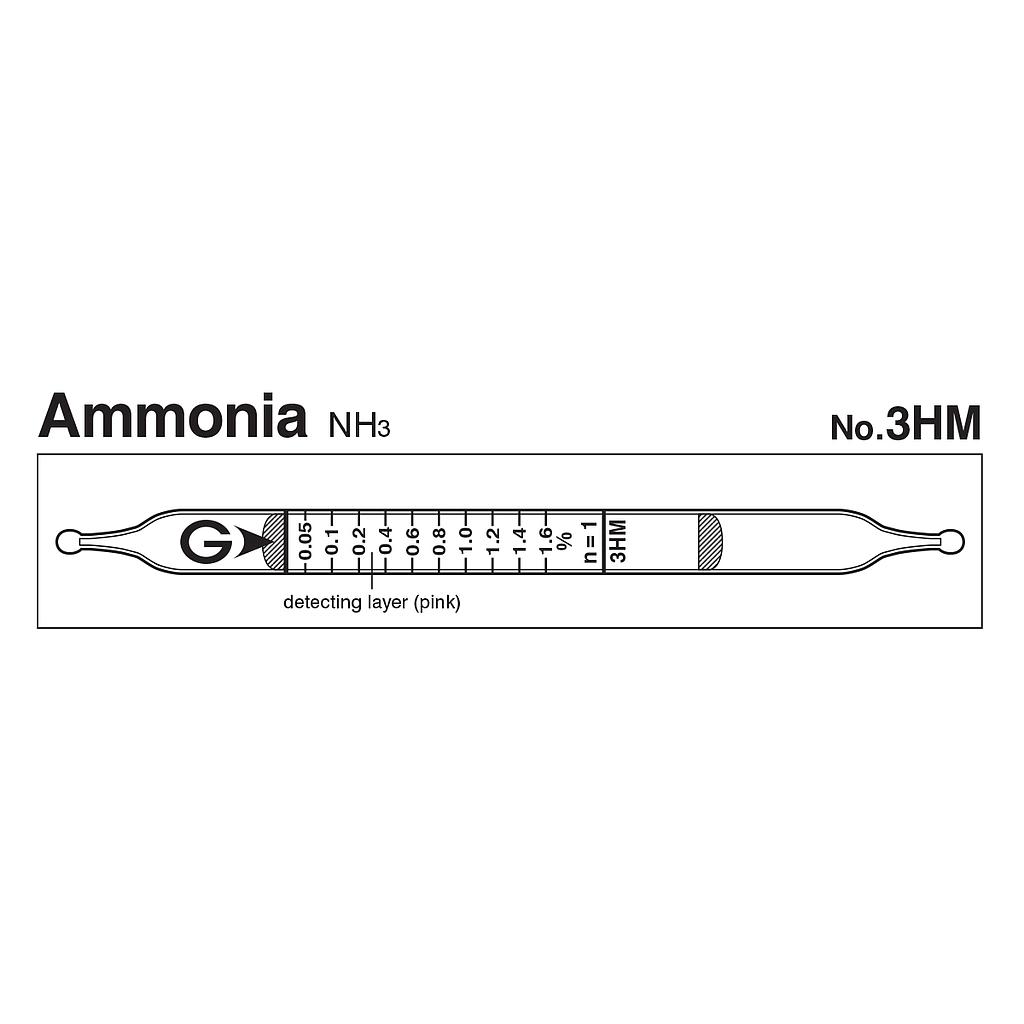

Gastec 3HM Quick-measuring Detector tubes Ammonia NH3 (0.05~3.52%)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model3HM
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 0.05 ~ 1.6%
Measuring Range:
+ 0.05 to 1.6%, Number of Pump Strokes 1
+ 1.6 to 3.52%, Number of Pump Strokes 1/2
Sampling Time: 1 minutes per pump stroke
Colour Change: Pink → Yellow
Reaction Principle: 2NH3 + H2SO4 → (NH4)2SO4
Coefficient of Variation: 10% (for 0.05 to 0.4 %), 5% (for 0.4 to 1.6 %)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
||
| Number of Pump Strokes |
|
||
| Correction Factor |
|
||
| Sampling Time | 1 minute per pump stroke | ||
| Detecting Limit | 0.01% (n=1) | ||
| Colour Change | Pink → Yellow | ||
| Reaction Principle | 2NH3 + H2SO4 → (NH4)2SO4 | ||
| Coefficient of Variation | 10% (for 0.05 to 0.4 %), 5% (for 0.4 to 1.6 %) | ||
| Shelf Life | 3 Years | ||
| Corrections for temperature & humidity | Unnecessary | ||
| Store the tubes at cool and dark place. | |||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Hydrazine | + | Yellow | |
| Pyridine | + | Yellow | |
| Amines other than aromatic amines | + | Yellow |
| Calibration gas generation | High pressure gas cylinder method |
| TLV-TWA | TLV-STEL | Explosive range |
| 25 ppm (2014) | 35 ppm (2014) | 15 to 28% |
