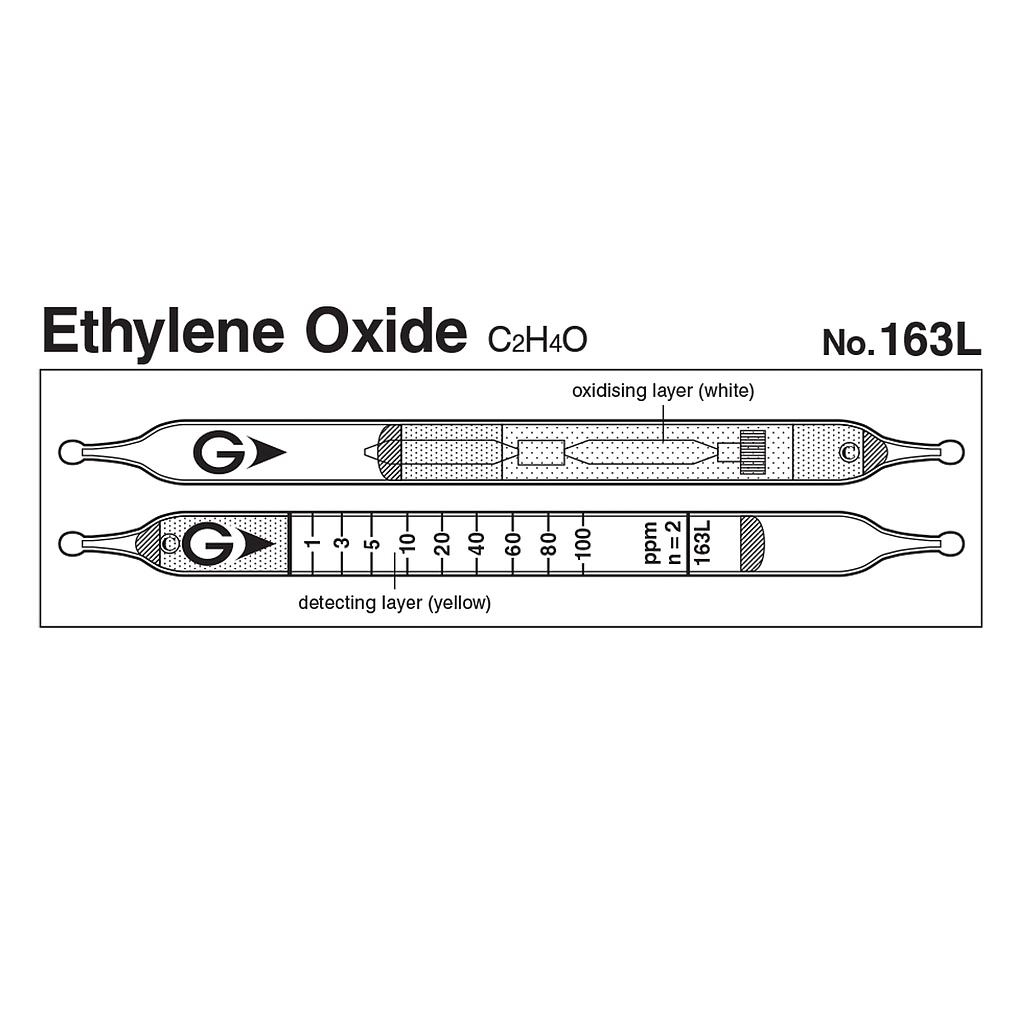

Gastec 163L Quick-measuring Detector tubes Ethylene oxide C2H4O (0.4 ~ 350 ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model163L
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 1 to 100 ppm
Measuring Range:
+ 0.4 to 1 ppm, Number of Pump Strokes 4
+ 1 to 100 ppm, Number of Pump Strokes 2
+ 100 to 350 ppm, Number of Pump Strokes 1
Sampling Time: 3 minute per pump stroke
Colour Change: Yellow → Reddish brown
Reaction Principle: 15% (for 1 to 20 ppm), 10% (for 20 to 100 ppm)
+ C2H4O → 2HCHO,
+ 3HCHO + (NH2OH)3H3PO4 → H3PO4,
+ H3PO4 + Base → Phosphate
Coefficient of Variation:
Nr. of tests: 5
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 3 minutes per pump stroke | |||
| Detecting Limit | 0.1 ppm (n=4) | |||
| Colour Change | Yellow → Reddish brown | |||
| Reaction Principle | C2H4O → 2HCHO 3HCHO + (NH2OH)3H3PO4 → H3PO4 H3PO4 + Base → Phosphate |
|||
| Coefficient of Variation | 15% (for 1 to 20 ppm), 10% (for 20 to 100 ppm) | |||
| Shelf Life | 1 Year | |||
| Corrections for temperature & humidity | Temperature correction is necessary | |||
| Store the tubes in the refrigerator to keep at 10ºC (50ºF) or below. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Aldehydes, Ketones | + | Reddish brown |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| Epichlorohydrin | 1.2 | 2 | 1.2 to 120 ppm |
| Propylene oxide | 1.0 | 1 | 1 to 100 ppm |
| Calibration gas generation | Permeation tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 1 ppm(2014) | - | 3.0 to 100% |
