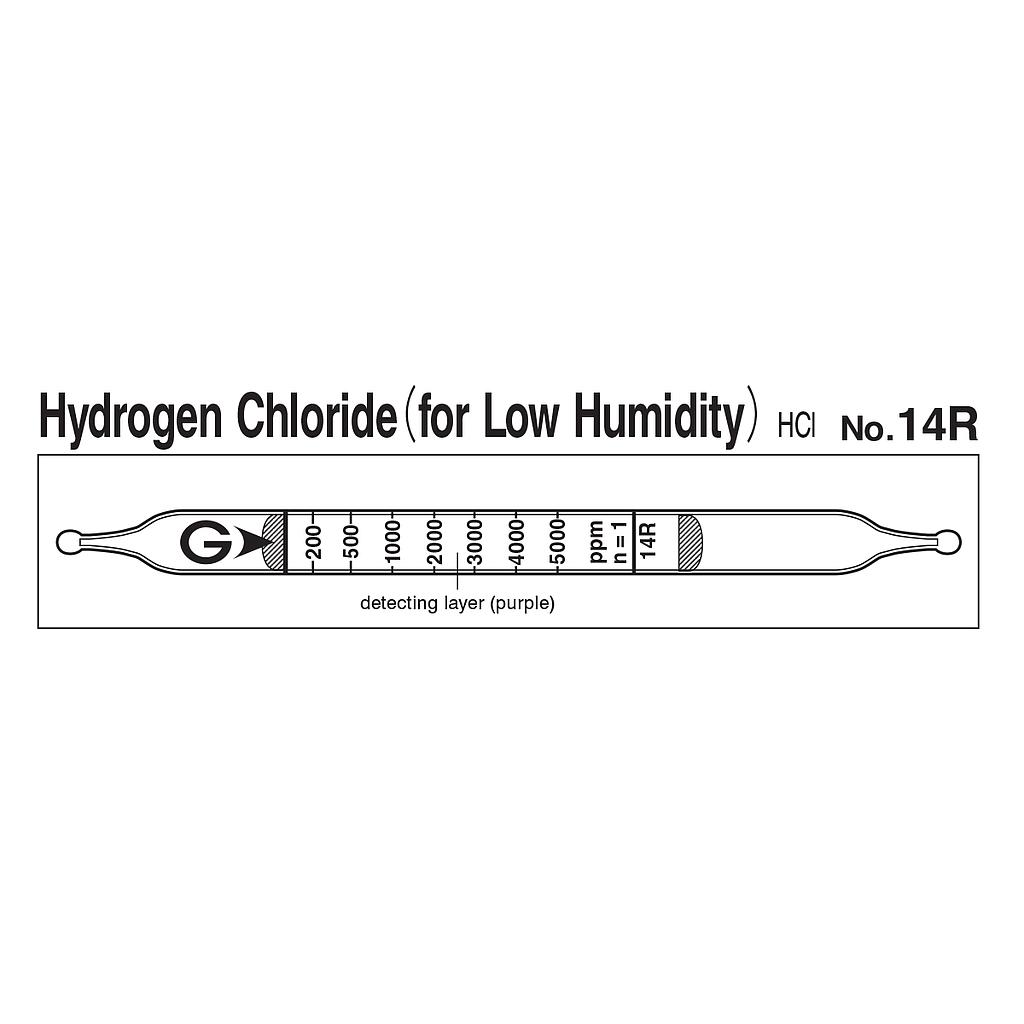

Gastec 14R Quick-measuring Detector tubes Hydrogen chloride HCl (50~5000ppm, for Low Humidity)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model14R
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 200 to 5000 ppm
Measuring Range:
+ 50 to 200 ppm, Number of Pump Strokes 2 to 4
+ 200 to 5000 ppm, Number of Pump Strokes 1
Sampling Time: 45 seconds per pump stroke
Colour Change: Purple → Pale pink
Coefficient of Variation: 10% (for 200 to 1000 ppm), 5% (for 1000 to 5000 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
||
| Number of Pump Strokes |
|
||
| Correction Factor |
|
||
| Sampling Time | 45 seconds per pump stroke | ||
| Detecting Limit | 10 ppm (n=4) | ||
| Colour Change | Purple → Pale pink | ||
| Reaction Principle | Hydrogen chloride reacts with indicator to produce pale pink stain. | ||
| Coefficient of Variation | 10% (for 200 to 1000 ppm), 5% (for 1000 to 5000 ppm) | ||
| Shelf Life | 3 Years | ||
| Corrections for temperature & humidity | Unnecessary | ||
| Store the tubes at cool and dark place. | |||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Carbon monoxide | No | No | |
| Nitric oxide | No | No | |
| Chlorine | ≧ 4ppm | + | White( ≧ 1ppm ) |
| Carbon dioxide | No | No | |
| Nitrogen dioxide | ≧ 1000ppm | + | White( ≧ 1000ppm ) |
| Hydrogen sulphide | ≧ 5% |  |
No |
| Sulphur dioxide | ≧ 100ppm | + | Yellow |
| n-Hexane | No | No |
| Calibration gas generation | High pressure gas cylinder method |
| TLV-TWA | TLV-STEL | Explosive range |
| - | C 2 ppm(2014) | - |
