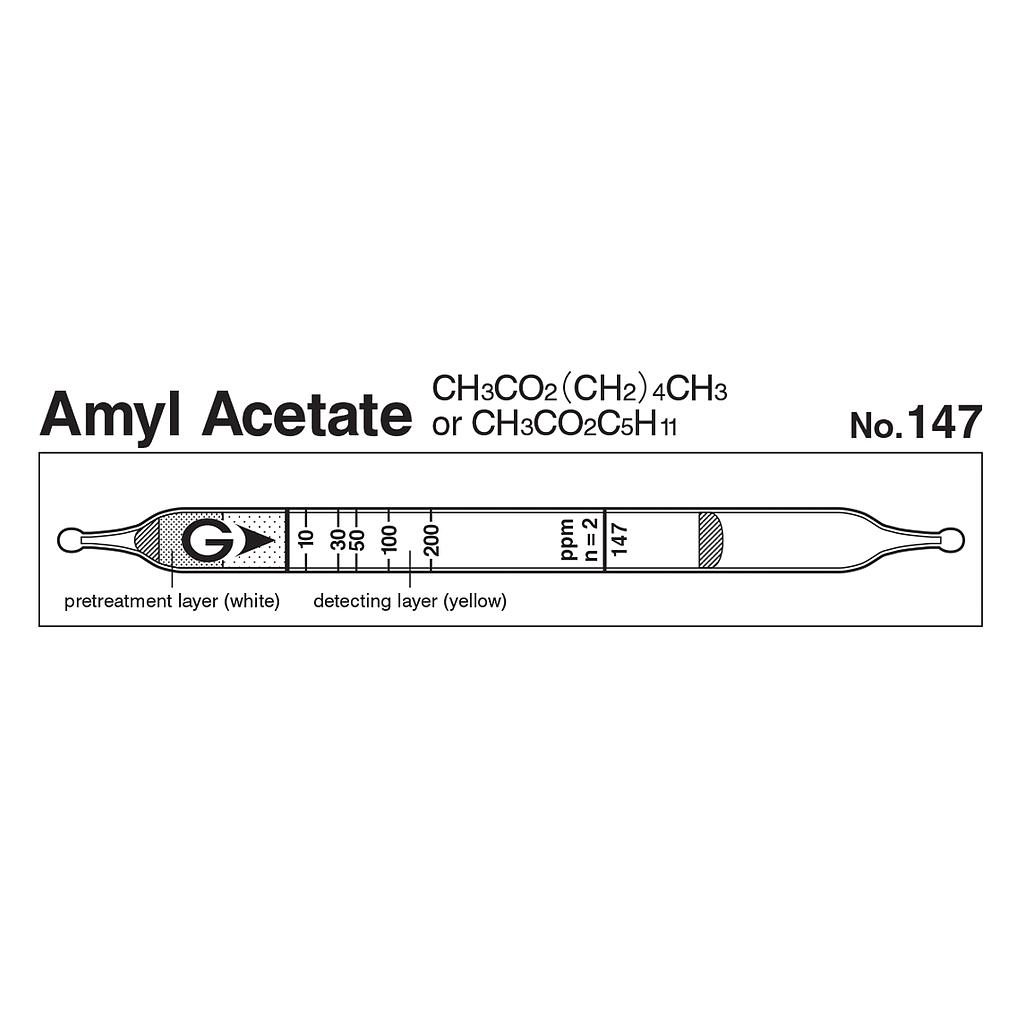

Gastec 147 Quick-measuring Detector tubes Amyl acetate CH3CO2C5H11 (10 ~ 200 ppm )
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model147
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 10 ~ 200 ppm
Measuring Range: 10 ~ 200 ppm , Number of Pump Strokes 2
Sampling Time: 2 minute per pump stroke
Colour Change: Yellow → Pale blue
Reaction Principle: CH3CO2(CH2)4CH3 + Cr6+ + H2SO4 → Cr3+
Coefficient of Variation: 15% (for 10 to 50 ppm), 10% (for 50 to 200 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range | 10 to 200 ppm |
| Number of Pump Strokes | 2 |
| Correction Factor | 1 |
| Sampling Time | 2 minutes per pump stroke |
| Detecting Limit | 2 ppm (n=2) |
| Colour Change | Yellow → Pale blue |
| Reaction Principle | CH3CO2(CH2)4CH3 + Cr6+ + H2SO4 → Cr3+ |
| Coefficient of Variation | 15% (for 10 to 50 ppm), 10% (for 50 to 200 ppm) |
| Shelf Life | 2 Years |
| Corrections for temperature & humidity | Temperature correction is necessary |
| Store the tubes at cool and dark place. | |
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue | |
| Ketones | + | Pale blue | |
| Esters | + | Pale blue |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 50 ppm(2014) | 100 ppm(2014) | 1.1 to 7.5% |
