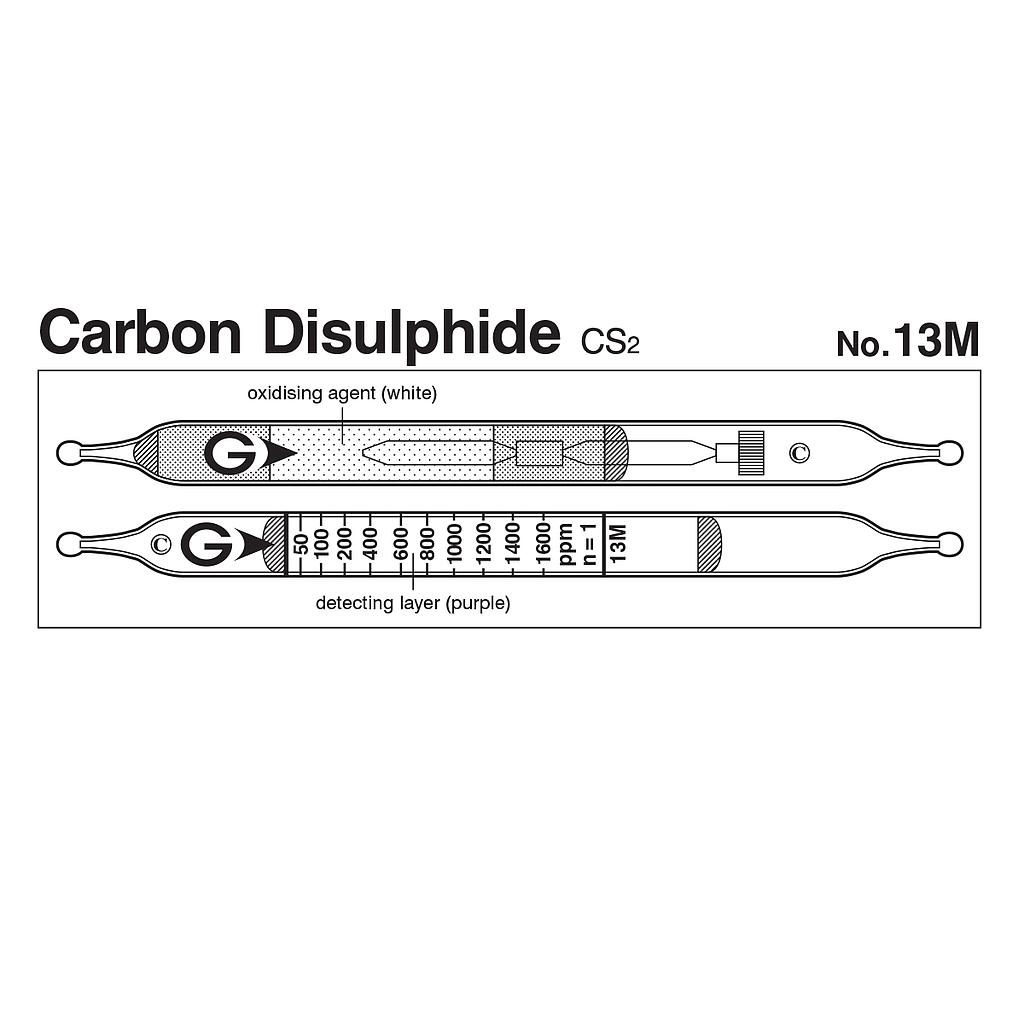

Gastec 13M Quick-measuring Detector tubes Carbon disulphide CS2 (20~4000ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model13M
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 50 to 1600 ppm
Measuring Range:
+ 20 to 50 ppm, Number of Pump Strokes 2
+ 50 to 1600 ppm, Number of Pump Strokes 1
+ 1600 to 4000 ppm, Number of Pump Strokes 1/2
Sampling Time: 1.5 minutes per pump stroke
Colour Change: Purple → Yellow
Reaction Principle: CS2 + I2O5 + H2S2O7 → SO2 + CO2, SO2 + BaCl2 + H2O → BaSO3 + 2HCl, HCl + Base → Chloride
Coefficient of Variation: 10% (for 50 to 400 ppm), 5% (for 400 to 1600 ppm)
Nr. of tests: 5
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 1.5 minutes per pump stroke | |||
| Detecting Limit | 10 ppm (n=2) | |||
| Colour Change | Purple → Yellow | |||
| Reaction Principle | CS2 + I2O5 + H2S2O7 → SO2 + CO2 SO2 + BaCl2 + H2O → BaSO3 + 2HCl HCl + Base → Chloride |
| Coefficient of Variation | 10% (for 50 to 400 ppm), 5% (for 400 to 1600 ppm) |
| Shelf Life | 3 Years |
| Corrections for temperature & humidity | Temperature correction is necessary |
| Store the tubes at cool and dark place. | |
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| sulphur dioxide | + | Yellow | |
| Hydrogen sulphide | + | Yellow | |
| Lower class HCs | 1000 ppm | + | Yellow |
| Carbonyl sulphide | + | Yellow |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 1 ppm(2014) | - | 1.3 to 50% |
