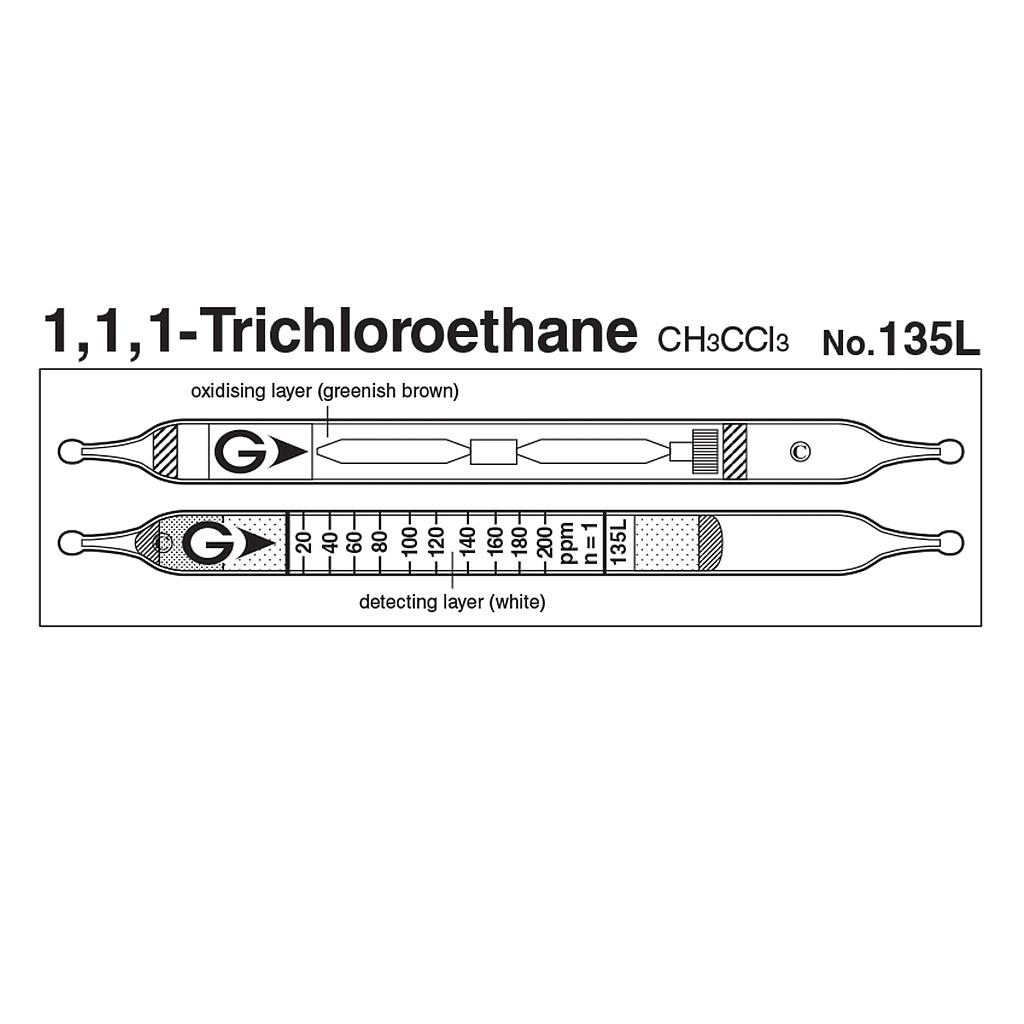

Gastec 135L Quick-measuring Detector tubes 1,1,1-Trichloroethane CH3CCl3 (6~900ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model135L
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 20 to 200 ppm
Measuring Range:
+ 6 to 20 ppm, Number of Pump Strokes 2
+ 20 to 200 ppm, Number of Pump Strokes 1
+ 200 to 900 ppm, Number of Pump Strokes 1/2
Sampling Time: 3 minute per pump stroke
Colour Change: White → Pale Pink
Coefficient of Variation: 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm)
Nr. of tests: 5
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 3 minutes per pump stroke | |||
| Detecting Limit | 3 ppm (n=2) | |||
| Colour Change | White → Pale Pink | |||
| Reaction Principle | 1,1,1-Trichloroethane reacts with oxidizing agent to produce intermediate products then it reacts with detecting agent to produce pale pink stain. | |||
| Coefficient of Variation | 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm) | |||
| Shelf Life | 2 Years | |||
| Corrections for temperature & humidity | Temperature correction is necessary | |||
| Store the tubes at cool and dark place. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Halogens | + | Pale pink | |
| Nitrogen oxides | + | Pale pink | |
| Saturated halogenated hydrocarbons | + | Pale pink |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| 1,2-Dichloroethane | 5.2 | 1 | 104 to 1040 ppm |
| 1,1,2,2-Tetrabromoethane | 0.046 | 4 | 0.92 to 9.2 ppm |
| 1,2,3-Trichloropropane | 1.8 | 4 | 36 to 360 ppm |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 350 ppm | 450 ppm | - |
