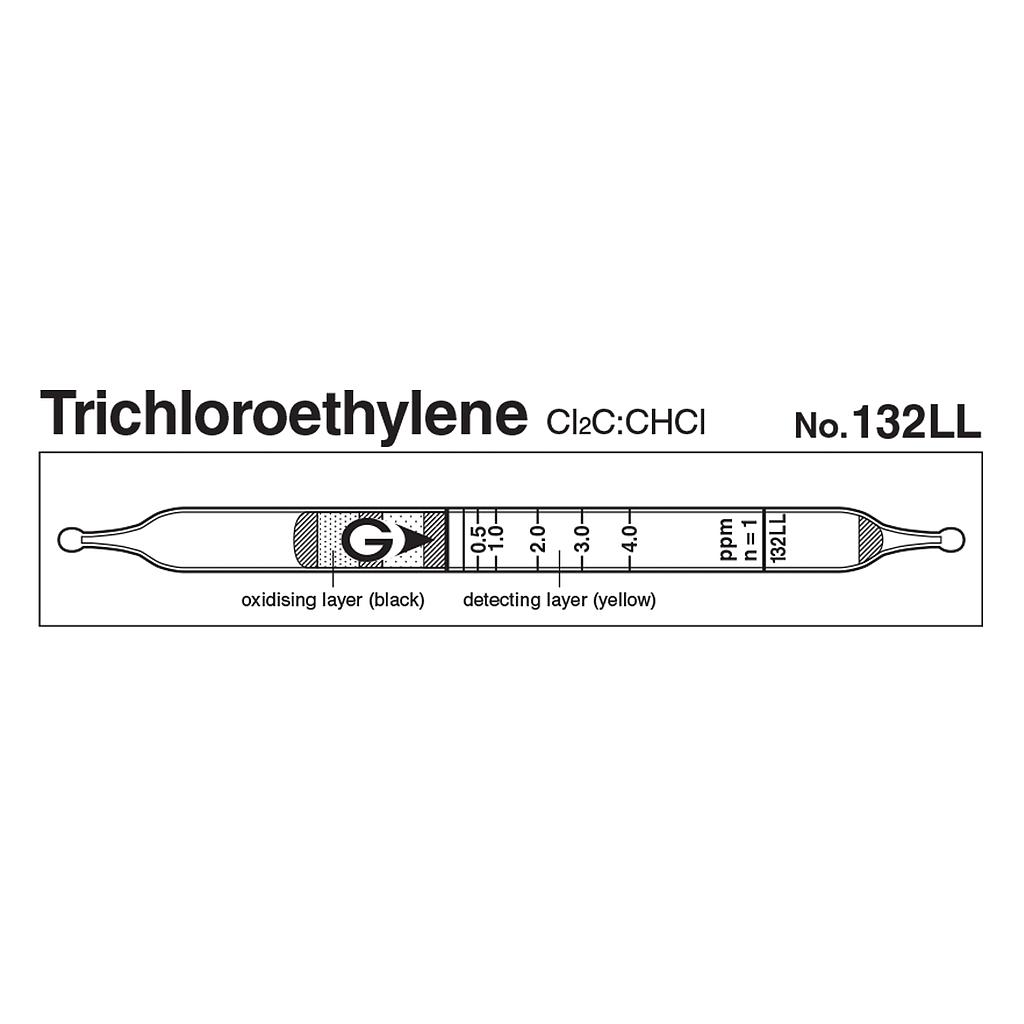

Gastec 132LL Quick-measuring Detector tubes Trichloroethylene Cl2C:CHCl (0.125~8.8 ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model132LL
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 0.5 to 4.0 ppm
Measuring Range:
+ 0.125 to 0.25 ppm, Number of Pump Strokes 2
+ 0.25 to 4.0 ppm, Number of Pump Strokes 1
+ 4.0 to 8.8 ppm, Number of Pump Strokes 1/2
Sampling Time: 1.5 minute per pump stroke
Colour Change: Yellow → Purple
Reaction Principle: Cl2C:CHCl + PbO2 + H2SO4 → HCl, HCl + Basic Compound → Chloride
Coefficient of Variation: 10% (for 0.25 to 1.0 ppm), 5% (for 1.0 to 4.0 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
|||
| Number of Pump Strokes |
|
|||
| Correction Factor |
|
|||
| Sampling Time | 1.5 minutes per pump stroke | |||
| Detecting Limit | 0.05 ppm (n=2) | |||
| Colour Change | Yellow → Purple | |||
| Reaction Principle | Cl2C:CHCl + PbO2 + H2SO4 → HCl HCl + Basic Compound → Chloride |
|||
| Coefficient of Variation | 10% (for 0.25 to 1.0 ppm), 5% (for 1.0 to 4.0 ppm) | |||
| Shelf Life | 2 Years | |||
| Corrections for temperature & humidity | Temperature correction is necessary | |||
| Store the tubes in the refrigerator to keep at 10ºC (50ºF) or below. | ||||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Hydrogen chloride, Chlorine, Bromine | ≧ 1/2 time | + | Purple |
| Tetrachloroethylene | ≧ 1/2 time | + | Purple |
| 1,1,1-Trichloroethane | ≦ 80 ppm | No | No ( ≦ 80 ppm) |
| Toluene, Xylene | No | No |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| 1,2-Dichloroethylene | 1.5 | 1 | 0.375 to 6 ppm |
| Dichlorvos | 0.45 | 2 | 0.11 to 1.8 ppm |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 10 ppm (2014) | 25 ppm (2014) | - |
