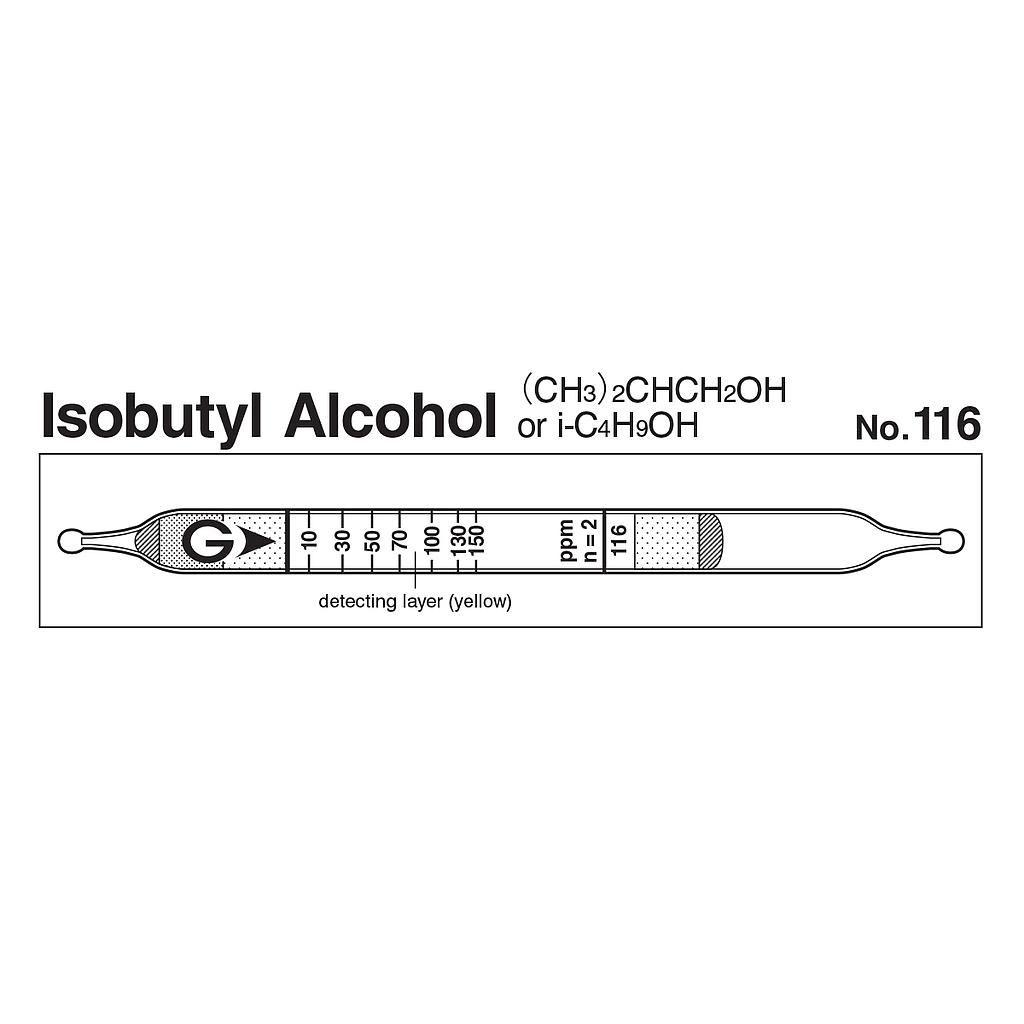

Gastec 116 Quick-measuring Detector tubes Isobutyl alcohol (CH3)2CHCH2OH (4~150ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model116
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 10 to 150 ppm
Measuring Range:
+ 4 to 10 ppm, Number of Pump Strokes 4
+ 10 to 150 ppm, Number of Pump Strokes 2
Sampling Time: 2 minutes per pump stroke
Colour Change: Yellow → Pale blue
Reaction Principle: (CH3)2CHCH2OH +Cr6++ H3PO4 →Cr3+
Coefficient of Variation: 15% (for 10 to 50 ppm), 10% (for 50 to 150 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range | 4 to 10 ppm | 10 to 150 ppm |
| Number of Pump Strokes | 4 | 2 |
| Correction Factor | 0.4 | 1 |
| Sampling Time | 2 minutes per pump stroke | |
| Detecting Limit | 3 ppm (n=4) | |
| Colour Change | Yellow → Pale blue | |
| Reaction Principle | (CH3)2CHCH2OH +Cr6++ H3PO4 →Cr3+ | |
| Coefficient of Variation | 15% (for 10 to 50 ppm), 10% (for 50 to 150 ppm) | |
| Shelf Life | 3 Years | |
| Corrections for temperature & humidity | Temperature correction is necessary | |
| Store the tubes at cool and dark place. | ||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue |
| TLV-TWA | TLV-STEL | Explosive range |
| 50 ppm (2015) | - (2015) | 1.7 to 10.6% |
