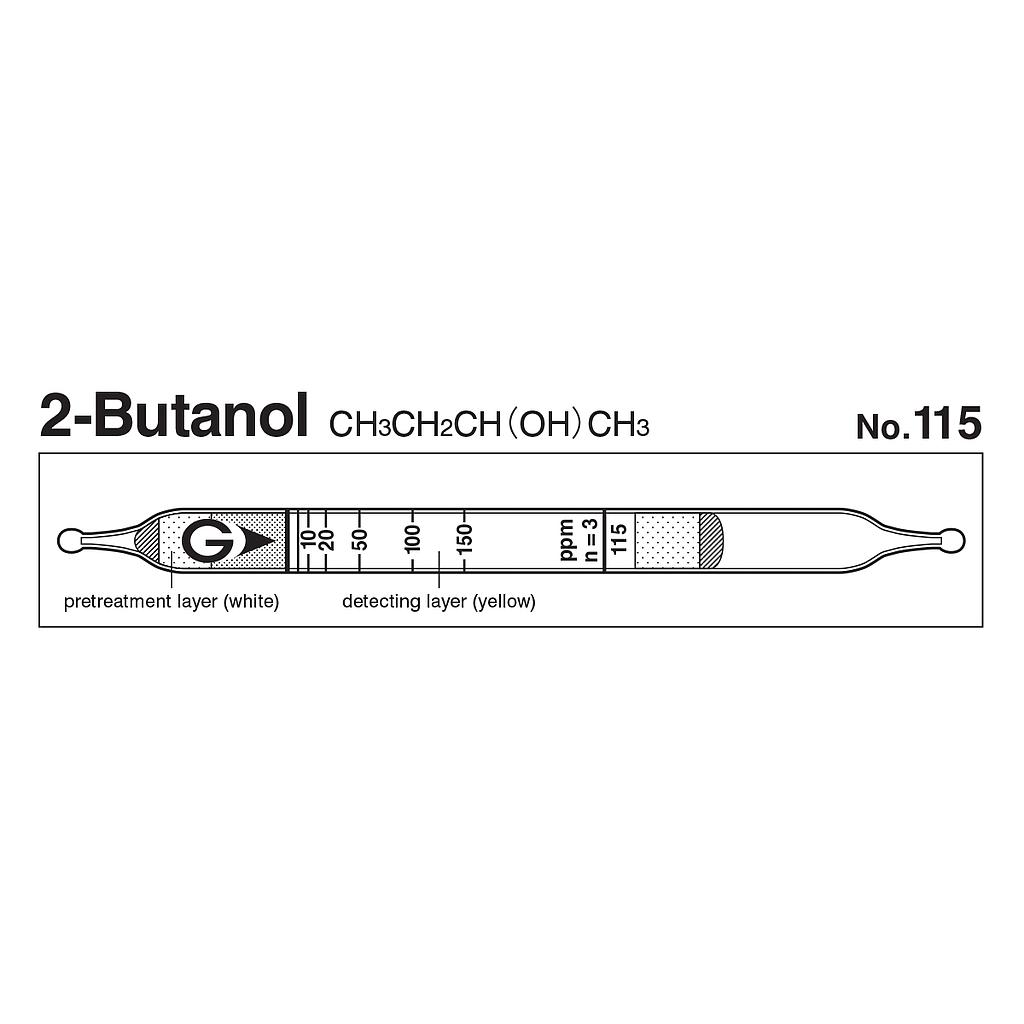

Gastec 115 Quick-measuring Detector tubes 2-Butanol CH3CH2CH(OH)CH3 (5 ~ 150 ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model115
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 10 to 150 ppm
Measuring Range: 5 to 150 ppm, Number of Pump Strokes 3
Sampling Time: 2 minute per pump stroke
Colour Change: Yellow → Pale blue
Reaction Principle: CH3CH2CH(OH)CH3 + Cr6+ + H3PO4 → Cr3＋
Coefficient of Variation: 15% (for 5 to 50 ppm), 10% (for 50 to 150 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range | 5 to 150 ppm |
| Number of Pump Strokes | 3 |
| Correction Factor | 1 |
| Sampling Time | 2 minutes per pump stroke |
| Detecting Limit | 1 ppm (n=3) |
| Colour Change | Yellow → Pale blue |
| Reaction Principle | CH3CH2CH(OH)CH3 + Cr6+ + H3PO4 → Cr3＋ |
| Coefficient of Variation | 15% (for 5 to 50 ppm), 10% (for 50 to 150 ppm) |
| Shelf Life | 3 Years |
| Corrections for temperature & humidity | Temperature correction is necessary |
| Store the tubes at cool and dark place. | |
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 100 ppm (2014) | - | 1.7 to 9.8% |
