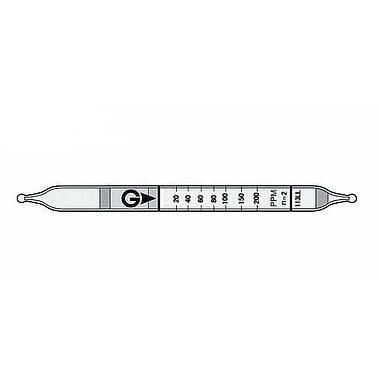

Gastec 113LL Quick-measuring Detector tubes Isopropyl alcohol C3H7OH (20~ 460 ppm)
ຜູ້ຜະລິດGastec(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model113LL
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
Indicator: 20 to 200 ppm
Measuring Range:
+ 20 to 200 ppm, Number of Pump Strokes 2
+ 200 to 460 ppm, Number of Pump Strokes 1
Sampling Time: 2 minute per pump stroke
Colour Change: Pink → Pale blue
Reaction Principle: CH3CH(OH)CH3 + Cr6++ H2SO4 → Cr3+
Coefficient of Variation: 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Performance
| Measuring Range |
|
||
| Number of Pump Strokes |
|
||
| Correction Factor |
|
||
| Sampling Time | 2 minutes per pump stroke | ||
| Detecting Limit | 7 ppm (n=2) | ||
| Colour Change | Pink → Pale blue | ||
| Reaction Principle | CH3CH(OH)CH3 + Cr6++ H2SO4 → Cr3+ | ||
| Coefficient of Variation | 10% (for 20 to 60 ppm), 5% (for 60 to 200 ppm) | ||
| Shelf Life | 2 Years | ||
| Corrections for temperature & humidity | Temperature correction is necessary | ||
| Store the tubes at cool and dark place. | |||
Possible coexisting substances and their interferences (NOTE)
| Substance | Concentration | Interference | Change colour by itself to |
| Alcohols | + | Pale blue | |
| Esters,Ketones | No | No | |
| Aliphatic hydrocarbon | No | No | |
| Aromatic hydrocarbon | No | No |
Other substance measurable with this detector tube
| Substance | Correction Factor | No. of pump strokes | Measuring Range |
| Propyl alcohol | by scale | 2 | 55 to 170 ppm |
| Ethylene glycol MBE | by scale | 2 | 60 to 400 ppm |
| Ethylene glycol MEE | 2.3 | 2 | 46 to 460 ppm |
| Ethylene glycol MME | 2.2 | 2 | 44 to 440 ppm |
| 1-Methoxy-2-propanol | 1.3 | 2 | 26 to 260 ppm |
| Calibration gas generation | Diffusion tube method |
| TLV-TWA | TLV-STEL | Explosive range |
| 200 ppm (2014) | 400 ppm (2014) | 2 to 12.7% |
