Number of operators: 1 person
Model: Floor-standing integrated
Dimensions: L*W*H——780*670*1300(mm)
Weight: 150KG
Operating area: closed
Reclaiming method: Vacuum suction
Number of electric batches: 2PCS
Number of feeders: 2PCS
Number of work stations: 2PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
Power supply: 220V 50HZ
Power: 350W
Applicable screw specifications: Below M3
Effectiveness: 1.0-1.2s/piece (depending on product and screw)
NPL ratio: 1‰ or less
Speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--120*200*12(mm)
Alarm item: Sliding teeth, leaking, unlocked
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 290
Control unit: 4+4 axis motion controller
Power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Front/front take, front/back
Model switching time: Within 30 minutes (take 100 pieces of screws as an example)
Data communication: USB port export (optional)
Annex: Coordinate adjustment handle

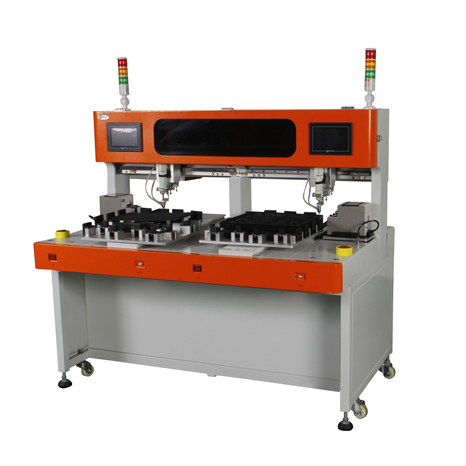

- This machine is the best-selling model of our company. In addition to excellent lock quality,
high speed and other features, the machine is designed for floor-standing integration, the structure is very firm,
the machine shakes very little during operation, the mechanical transmission part is completely separated from the electrical control part,
which is convenient for machine maintenance and maintenance.
-Efficient—1.0S-1.2S/
-can completely replace the manual lock screw.
-High speed, stable and
-can store a variety of products. Screw coordinate
-structure is firm and long life.
-Easy to learn and use
