Number of operators: 1 person or no one
Model: Floor-standing integrated
Dimensions: L*W*H——1045*1000*1330(mm)
Weight: 250KG
Operating area: Protective
Reclaiming method: Vacuum suction
Number of screw driver: 1PCS
Number of feeders: 2PCS
Number of work stations: 1PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
Power supply: 220V 50HZ
Power: 500W
Applicable screw specifications: Below M6
effectiveness: 1.5-2.0s/piece
NPL ratio: 1‰ or less (in number of screws)
speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--400*400*100(mm)
Alarm item: Sliding teeth, leaking, floating height (optional)
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 290
Control unit: 4+4 axis motion controller
Power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Front/front take, front/back
Model switching time: Within 30 minutes (take 100 pieces of screws as an example)
Data communication: USB port export (optional)
Annex: Coordinate adjustment handle

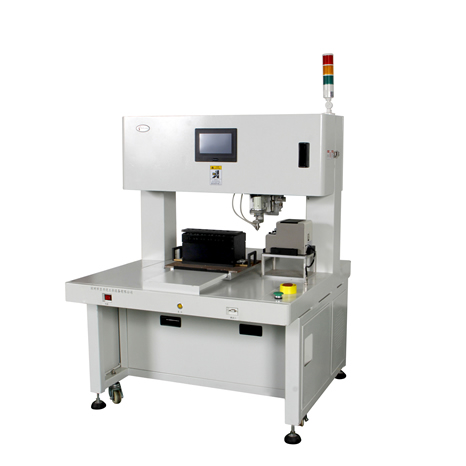

- This machine is a floor-standing design, suitable for screws with M3 and below, and larger product sizes.
With double screw feeder, it can effectively save the lock time and effectively improve the stability of the whole machine.
There is no strict requirement on the screw type and the length to diameter ratio.
The working mode is single player mode and unmanned mode, which can be freely selected according to production needs.
-Applicable to products with large outer dimensions.
-Suitable for high-difference products with locked heights
-: 1.5S-2.0S/piece
-Can completely replace manual lock screw station
-wherein when a screw feeder repair fails or is removed, the machine can still work normally
-applied to the same two different head diameter screw
-versatility
-Can store a variety of products, screw coordinates are
-stable and reliable
-Easy to learn and use
