Number of operators: unmanned
Model: Floor-standing integrated
Dimensions: L*W*H——785*1280*1325(mm)
Weight: 210KG
Operating area: Protective
Reclaiming method: Vacuum suction
Number of electric batches: 1PCS
Number of feeders: 1PCS
Number of work stations: 2PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
Power supply: 220V 50HZ
Power: 320W
Applicable screw specifications: Below M3
effectiveness: 1.0s-1.2s/piece
NPL ratio: 1‰ or less (in number of screws)
speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--120*200*20(mm)
Alarm item: Sliding teeth, leaking, floating height (optional)
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 24
Control unit: 4+1 axis motion controller
Power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Unmanned automatic, front/front, front/rear arm unloading
Model switching time: Within 20 minutes
Data communication: USB port export (optional)
Annex: Coordinate adjustment handle

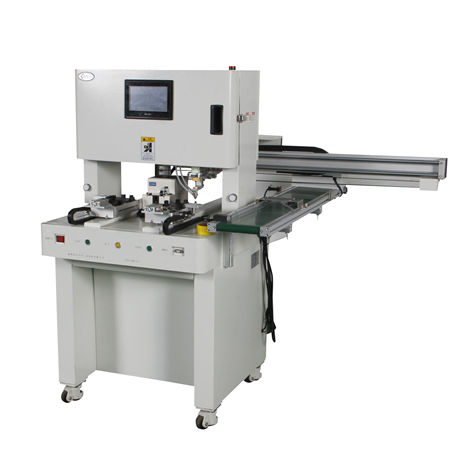

-The screw machine is automatically loaded and unloaded by the standard machine,
and the robot arm is loaded and unloaded to completely realize unmanned operation.
The single Z-axis double platform lock screw mode enables uninterrupted operation of the machine.
The small short line of the machine and the robot arm and the double head machine are easy to move as a whole.
Easy to adjust, easy to learn and use.
-Single lock pay Z axis, double working platform
-appearance multiple arc design, beautiful and generous
-versatility
-can store a variety of products screw coordinates
-automatic loading and unloading function
-Easy to learn and use
