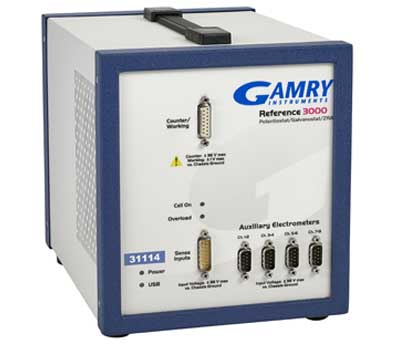

GAMRY Reference 3000 With Auxiliary Electrometer Potentiostats (11 (300 pA – 3 A))

SYSTEM

Potentiostat: Yes

Galvanostat: Yes

Zero Resistance Ammeter: Yes

Floating (Isolated from Earth Ground): Yes

Cell Connections: 2, 3, 4 5 or 21+

Maximum Current: ±3 A or ±1.5 A @ 32V

Current Ranges: 11 (300 pA – 3 A)

Current Ranges(including internal gain): 13

Minimum Current Resolution: 92 aA

Maximum Applied Potential: ±32 V

Rise Time: <250 ns

Minimum Time Base: 3.333 μs

Noise and Ripple (typical): <2 μV rms

Weight: 7 kg

Dimensions: 20 (W) x 23 (H) x 30 (D) cm
