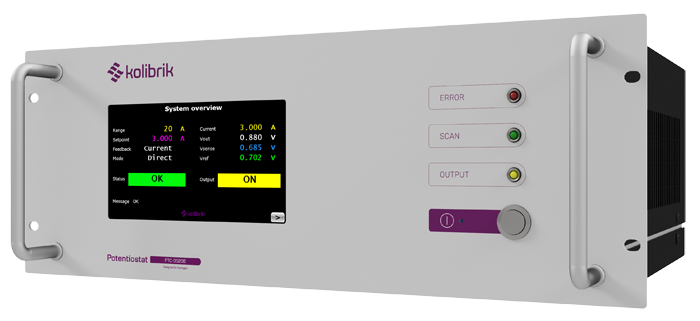

GAMRY PTC-0520E Kolibrik Potentiostats (4 current ranges (20 mA, 200 mA, 2 A, 20 A))
SYSTEM
Potentiostat: Yes
Galvanostat: Yes
Power supply: 110..240V AC / 50..60 Hz
Dimensions: 19“ rack cabinet, 4U height
Cooling: Air
Protection rating: IP20
Electrometer Input voltage range: -10 V +10 V
Compliance / Output voltage: -5 V +5 V
Compliance / Output current: -20 A +20 A
Current Ranges: 4 current ranges (20 mA, 200 mA, 2 A, 20 A)
Sampling: 24-bit ADCs, 1 ksps internal, 50 sps filtered sampling 14-bit ADCs, up to 20 Msps, for EIS measurements
Measurement resolution: 0.001 % of selected range for ≤ 1 ksps sampling
Accuracy: Voltage ≤ 0.1 % of range + 0.1 % of reading; Current ≤ 0.1 % of range + 0.5 % of reading
Acquisition methods: constant V, I, open circuit ...
EIS frequency: 1 mHz 1 MHz
EIS amplitude: 1.. 1000 mV, up to 10 A for < 1 kHz
Connection: USB 2.0
Software : Software for MS Windows, TCP Server, NI LabVIEW drivers
