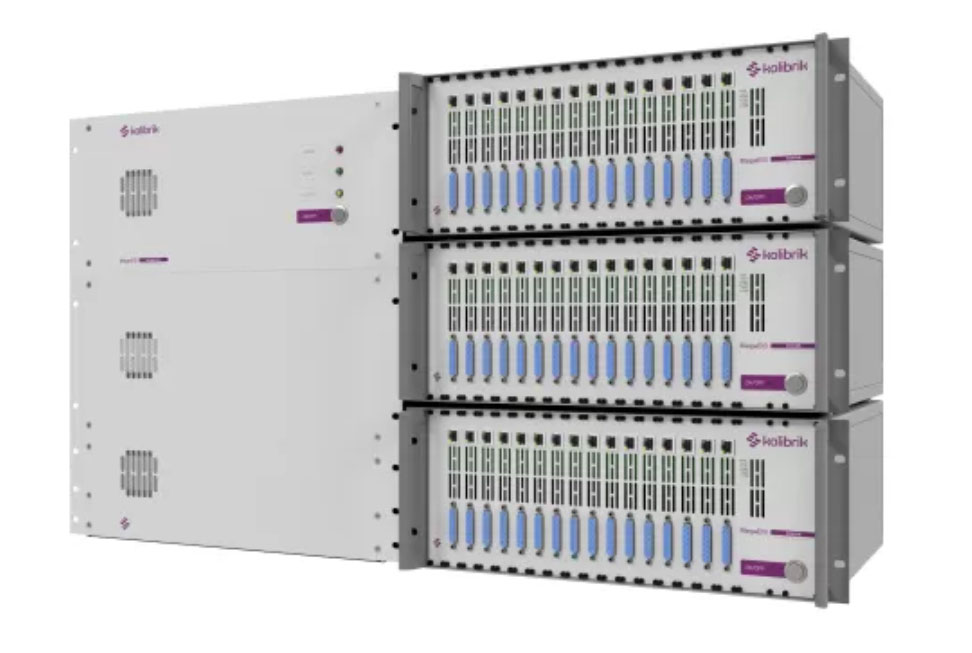

GAMRY MegaEIS Kolibrik Potentiostats (Up to 2000 A)
SYSTEM
Power supply: 110..230 V AC / 50..60 Hz 3x 400 VAC for high-power devices
Dimensions: Modular design for 19“ rack cabinet
Protection rating: IP20
Input Voltage: Up to 1000 V
Total input current (internal + external load):Up to 2000 A
Internal load current: Up to 2000 A
Maximum internal load power dissipation: 20 kW
Cooling: Water
Stack electrometer voltage ranges: Up to ±1000 V
EIS frequency: 1 mHz .. 100 kHz
EIS amplitude: Up to 20% of maximum internal current for < 1 kHz
EIS channel voltage range: ±3 V (can be customized)
Number of EIS channels: Up to 1000 (limited by max. voltage) 8 channels per one module
Connection: USB 2.0, Ethernet
Software: Control software for MS Windows
