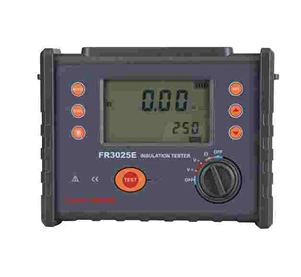

FUZRR FR3025E Insulation Resistance Tester (5000V; 0.01MΩ-200GΩ)

Rated voltage(V): 250 ; 500 ; 1000 ; 2500 ; 5000

Insulation resistance range(GΩ): 0.01MΩ-200GΩ

Resolution: 0.01MΩ

Accuracy: ±3%rdg±5dgt

Function: Insulation resistance test, voltage test

Voltage range: DC: 0 -1000V, resolution: 0.1V; AC:0~750V, resolution : 0.1V

Power: 1.5V (LR14)

Display mode: 4-bit large LCD display, gray screen backlight

LCD Display Size: 108mmx65mm

Meter Dimension L/W/H: 240mm*188mmx85mm

Power Consumption: Standby: 40mA Max(backlight off), turn on backlight: 43mA Max; Measure: 80mA Max (backlight off)

Weight: 1230g (including battery)

Automatic shut-down: automatic shutdown after 15 minutes boot

Insulation Resistance: ≥50MQ (1000V)
