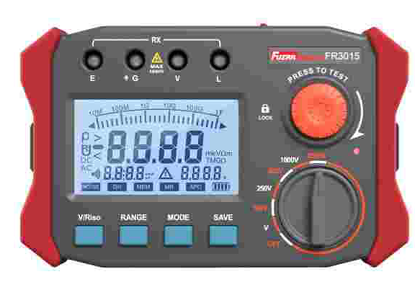

FUZRR FR3015E Insulation Resistance Tester (250 ~ 2500V, 0.1MΩ~100GΩ)

Rated voltage: 250 ~ 2500V

Insulation resistance: 0.1MΩ~100GΩ

Function: Insulation resistance test, voltage test

Base condition: 23°C ± 5°C, below 75%RH

Insulation resistance range (GΩ): 100GΩ max, Resolution : 0.01 MΩ

Insulation resistance resolution: 0 ~ 1000V, Resolution: 0.1V

AC voltage range: 0-750 V, Resolution: 0 .1V

Output short -circuit current: >1.5mA (1000V)

Power supply: 1.5V (AA)

LCD display size: 73mm X 43mm

Meter size: 175mm (long) X 112mm (width) X 53mm (height)

Alarm function: When the measurement value exceeds the alarm setting value

Power consumption

- Standby: 20MA MAX (Backlight shutdown)

- Putting on the backlight: 43MA MAX

- Measurement: 320mA max (Backlight shutdown)

Weight: 1230g (including battery)
