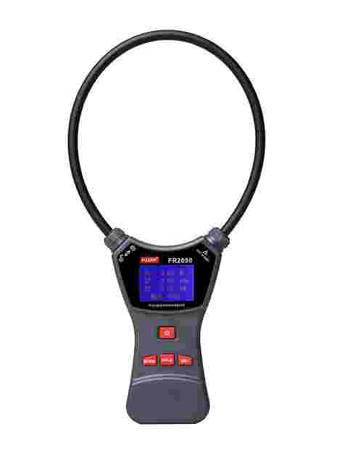

FUZRR FR2050 ເຄື່ອງວັດແທກພະລັງງານ Clamp ທີ່ມີຄວາມຍືດຫຍຸ່ນ (0-3000AAC, 0- 600VAC, 0.5W-1800KWAC)

Coil length: 470mm

Coil inner diameter: φ150mm

Function: Three-phase AC voltage, leakage current, current, active power, reactive power, apparent power, total power, phase of current and voltage, phase between voltage, frequency, energy, phase sequence, etc.

Current range: AC0.0A-3000A, Resolution: 0.1A

Voltage range: AC 0.00V - 600V, Resolution: 0.01V

Phase range: 0.0°-360.0°, Resolution: 0.1°

Power factor: 0.3-1.0, Resolution : 0.001

Power range: AC 0.5W-1800KW, Resolution :0.01W

Electric energy range: 0.0000KWh - 180000KWh, Resolution: 0.0001 KWh

Power: DC4.5V 7# Alkaline battery ( 1.5VAAAX3 )

Jaw size:  φ150mm

Wire position: The measured wire is at the center of the flexible coil

Sample rate: About 2 times/second

Display mode LCD: 128dotsx64dots; Display area: 43mmx29mm

Instrument size: Host size:W/T/H 151*100*35mm (without coil)

Backlight: Have

Instrument weight: 1 kg(with battery and accessories)

Working current: Backlight turn on 50mA
