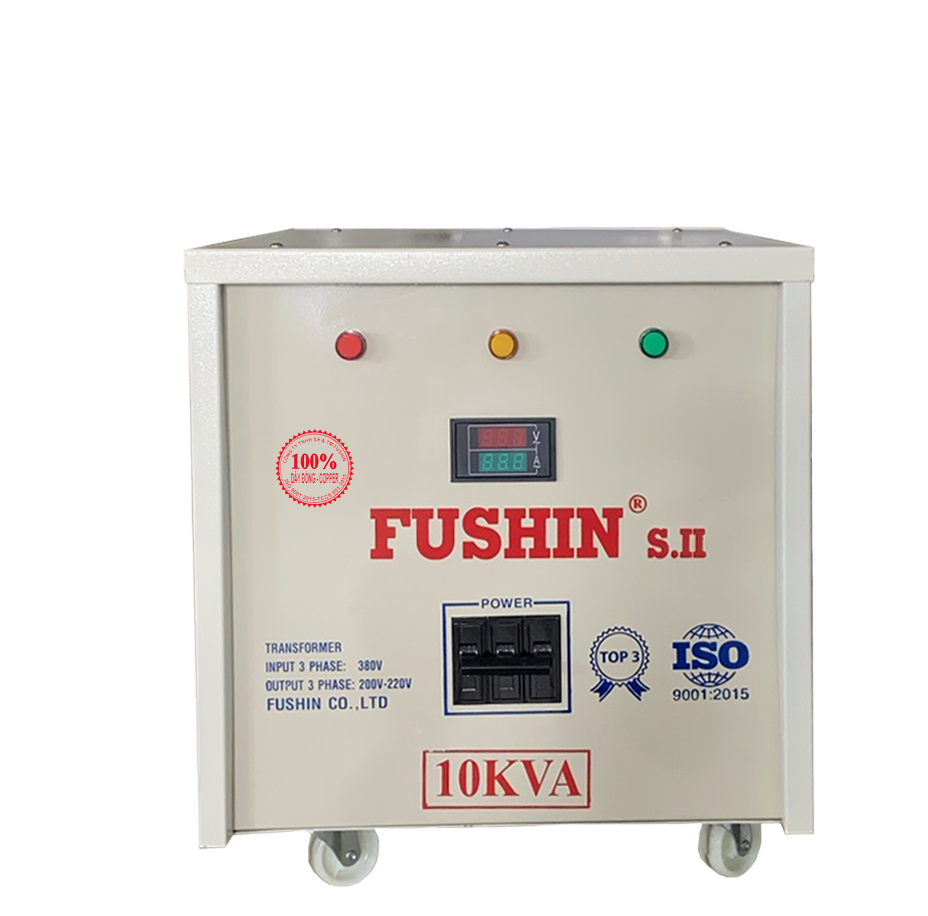

Fushin S.IICU3P-10K ໝໍ້ແປງໄຟຟ້າ 3 ເຟດທີ່ໂດດດ່ຽວ (10KVA, 380V/3P, 50Hz /60Hz)

Input voltage: 380V (3-phase)

Output voltage: 200V-220V (3-phase + N)

Frequency: 50Hz/60Hz

Power: 10KVA

Operating principle: Self-cooling transformer

Machine type: Dry-type transformer with electrostatic powder-coated steel casing

Insulation class: Class F

Insulation resistance: Greater than 5MΩ at 1000VDC voltage

Dielectric strength: Tested at 2000V for 1 minute without discharge

Display: Digital Volt-Ampere Indicator, Phase Indicator Light

Ambient temperature: -5 – 65˚C

Efficiency: ≤ 95%

Dimensions: 44 x 40 x 45 cm

Weight: 40Kg

Winding: Copper wire.
