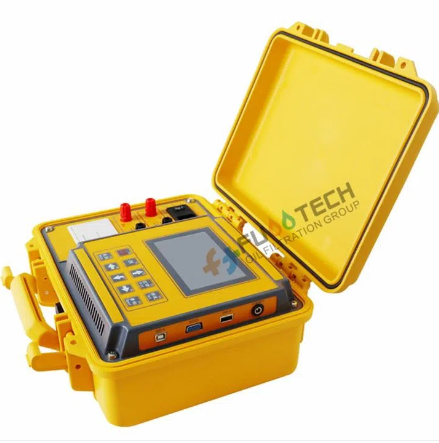

Fuootech FTDC-10B Digital Transformer DC Resistance Tester (<20mA, 40mA, 200mA, 1A, 5A, 10A)

1)Output current: automatic、<20mA 、40mA、200mA、1A、5A、10A

2) Resolution: 0.1 uΩ

3) Range: 0.5mΩ~0.8Ω (10A)

1mΩ-4Ω (5A)

5mΩ-20Ω (1 A)

100mΩ-100Ω (200mA)

1Ω-500Ω (40mA)

100Ω-100KΩ (<20mA)

4)Accuracy: ±(0.2%+2 Readings)

5)Operating temperature: 0~40℃

6)Ambient humidity: ≤90%RH，(non condensed)

7)Size: 360*290*170 mm.

8)Instrument weight: tester: 6 KG, Wire box: 5 KG
