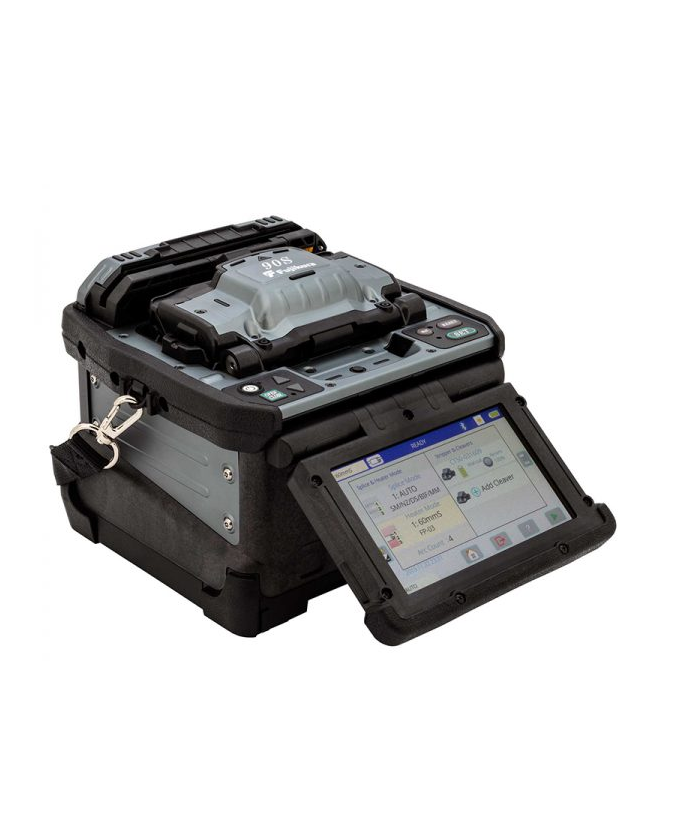

Fujikura 99S ເຄື່ອງຕໍ່ເຊື່ອມຟິວຊັນ
Fiber alignment method: Active core alignment
Fiber count can be spliced: Single fiber
Applicable fiber
Fiber type:
Single mode optical fiber
Multi mode optical fiber
Cladding dia.: 80 to 150μm
Applicable coating
Sheath clamp
Coating dia.: Max. 3000μm
Cleave length: 5 to 16mm
Fiber splice performance
Splice loss:
ITU-T G.652: Avg. 0.02dB
ITU-T G.651: Avg. 0.01dB
ITU-T G.653: Avg. 0.04dB
ITU-T G.654: Avg. 0.04dB
ITU-T G.655: Avg. 0.04dB
ITU-T G.657: Avg. 0.02dB
Splice time
SM FAST mode: Avg. 7 to 9sec.
AUTO mode: Avg. 14 to 16sec.
Applicable protection sleeve
Sleeve type: Heat shrinkable sleeve
Sleeve length: Max. 66mm
Sleeve dia.: Max. 6.0mm before shrinking
Sleeve heat performance
Heat time:
60mm slim mode: Avg. 9 to 10sec.
60mm mode: Avg. 13 to 15sec.
Fiber tensile test force: Approx. 2.0N
Electrode life: Approx. 5000 splices
Physical description
Dimensions W: Approx. 170mm without projection
Dimensions D: Approx. 173mm without projection
Dimensions H: Approx. 150mm without projection
Weight: Approx. 2.8kg including battery
Environmental condition
Temperature:
Operate: -10 to 50 degreeC
Storage: -40 to 80 degreeC
Humidity:
Operate: 0 to 95%RH non-condensing
Storage: 0 to 95%RH non-condensing
Altitude: Max. 5000m
AC adaptor:
Input: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery pack:
Type: Rechargeable Lithium lon
Output: Approx. DC14.4V/6380mAh
Capacity: Approx. 300 splice and heat cycles
Temperature
Recharge : 0 to 40 degreeC
Storage: -20 to 30 degreeC
Battery life: Approx. 500 recharge cycles
Display
LCD monitor: TFT 5 inches with touch screen
Magnification: 200 to 320x
Illumination:
V-grooves: LED lamp
Interface
PC: USB2.0 Mini B type
External: USB2.0 A type
LED lamp: Approx. DC5V, 500mA
Ribbon Stripper: Mini DIN 6pin DC12V, Max. 1A
Wireless: Bluetooth 4.1 LE
Data storage
Splice mode: 100 splice modes
Heat mode: 30 heat modes
Splice result: 20000 splices
Splice image: 100 images
Screw hole for tripod: 1/4-20UNC
