Fiber alignment method: Active core alignment
Fiber count can be spliced: Single fiber
Applicable fiber
- Fiber Type:
+ Single mode optical fiber
+ Multi mode optical fiber
Fiber splice performance:
- Splice loss
+ ITU-T G.652: Avg. 0.02dB
+ ITU-T G.651: Avg. 0.01dB
+ ITU-T G.653: Avg. 0.04dB
+ ITU-T G.655: Avg. 0.04dB
+ ITU-T G.657: Avg. 0.02dB
- Splice loss
+ SM FAST mode: Avg. 8 to 10 sec.
+ AUTO mode: Avg. 14 to 16 sec.
Fiber tensile test force: Approx. 2.0N
Electrode life: Approx. 5.000 splices
Physical description without projection (WxDxH): Approx. 170x173x150mm
Weight: Approx. 2.8 kg including battery
Environmental condition
Temperature operate: -10 to 50°C
Storage: -40 to 80°C
Humidity operate: 0 to 95% RH non-condensing
Storage: 0 to 95% RH non-condensing
Altitude: Max. 5.000m
Ac Adaptor: Input AC100 to 240V, 50/60Hz, Max. 1.5A
Battery pack
- Type rechargeable Lithium Ion
- Output Approx. DC14.4V / 6,380 mAh
- Capacity Approx. 300 splice and heat cycles
- Temperature:
+ Recharge: 0 to 40°C
+ Storage: -20 to 30°C
- Battery life: Approx. 500 recharge cycles
Display:
- LCD Monitor: TFT 5 inches with touch screen
- Magnification: 200 to 320x
Illumination: V-Grooves: LED lamp
Interface
- PC: USB2.0 Mini B type
- External led lamp: USB2.0 A type, Approx. DC5V, 500 mA
- Ribbon stripper: Mini DIN 6 pin, DC12V, Max. 1A
- Wireless: Bluetooth 4.1 LE
Data storage
- Splice mode: 100 splice modes
- Heat mode: 30 heat modes
- Splice result: 20.000 splices
- Splice image: 100 images
Included supply:

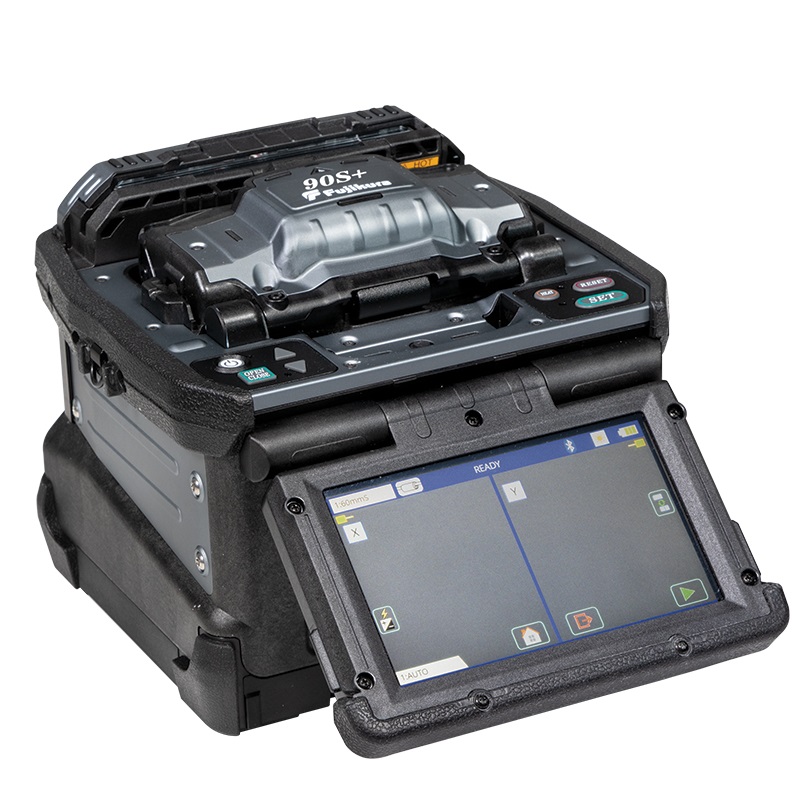

Core alignment fusion splicer Fujikura 90S+
Battery Pack
AC Adapter
AC Power Cord
USB Cable
Fusion Splicer Strap
Electrodes (spare)
Fiber Holder Set Plate
Carrying Case
Work Tray Left
Work Tray Right
Work Tray J-Plate
Tripod Screw
Carrying Case Strap
Alcohol Dispenser
Quick Reference Guide
Single Fiber Stripper
High precisionl Fiber Cleaver CT50
Buffer Tube Cutter
Cable Sheath Cutter (Outer Jacket Slitter and Cutter)
