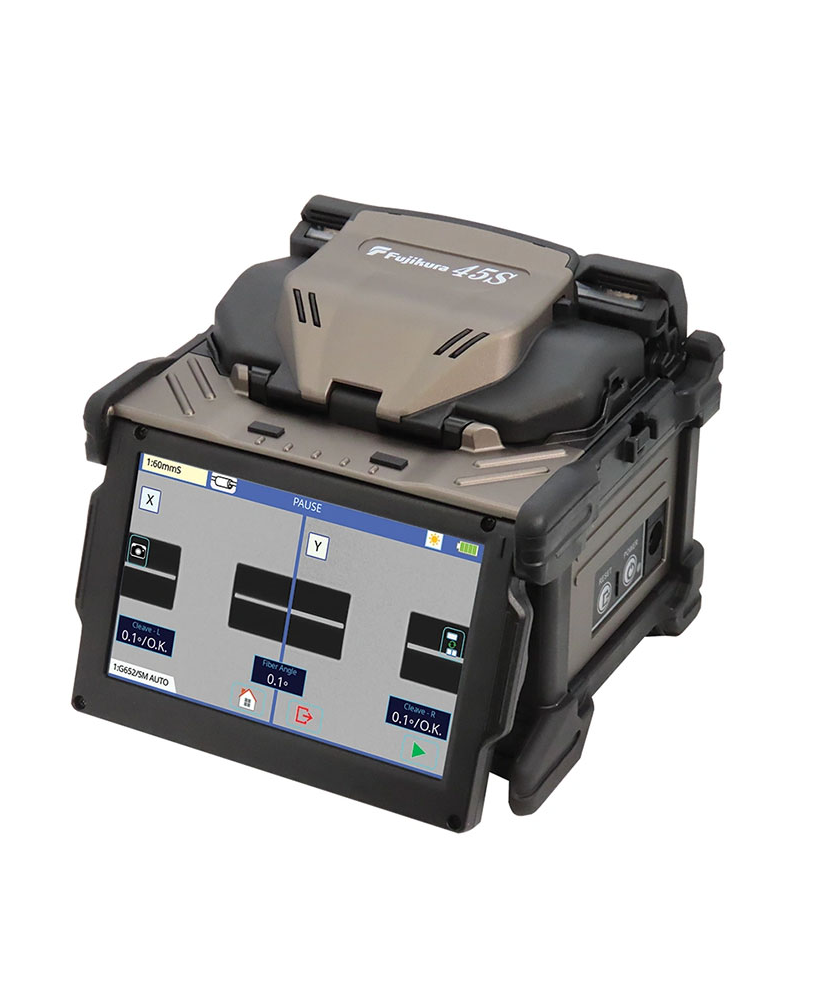

Fujikura 45S ເຄື່ອງຕໍ່ເສັ້ນໄຍແກ້ວນຳແສງ
Fiber alignment method: Active clad alignment
Fiber count can be spliced: Single fiber
Applicable fiber
Fiber type:
Single mode optical fiber
Multi mode optical fiber
Cladding dia.: Approx.125µm
Applicable coating
Sheath clamp:
Coating dia.: Max. 3000μm
Cleave length: 5 to 16mm
Fiber splice performance
Splice loss
ITU-T G.652: Avg. 0.03dB
ITU-T G.651: Avg. 0.01dB
ITU-T G.653: Avg. 0.05dB
ITU-T G.655: Avg. 0.05dB
ITU-T G.657: Avg. 0.03dB
Splice time: SM FAST mode: Avg. 6 to 8sec.
Applicable protection sleeve
Sleeve type: Heat shrinkable sleeve
Sleeve length: Max. 66mm
Sleeve dia.: Max. 6.0mm before shrinking
Sleeve heat performance
Heat time:
60mm mode: Avg. 21 to 23sec.
60mm slim mode: Avg. 16 to 18sec.
Fiber tensile test force: Approx. 2.0N
Electrode life: Approx. 6,000 splices
Physical description
Dimensions W: Approx.131mm without projection
Dimensions D: Approx.123mm without projection
Dimensions H: Approx.121mm without projection
Weight: Approx. 1.4kg including battery
Environmental condition
Temperature
Operate: -10 to 50°C
Storage: -40 to 80°C
Humidity
Operate: 0 to 95%RH non-condensing
Storage: 0 to 95%RH non-condensing
Altitude: Max. 5000m
AC adaptor
Input: AC100 to 240V, 50/60Hz, Max. 1A
Type: Rechargeable Lithium Ion
Output: Approx. DC14.4V, 3190mAh
Battery pack:
Type: Rechargeable Lithium Ion
Output: Approx. DC14.4V, 3190mAh
Capacity:
60mm mode: Approx. 200 splice and heat cycles
60mm slim mode: Approx. 230 splice and heat cycles
Temperature:
Recharge: 0 to 40°C
Storage less than 1 year: -20 to 20°C
Storage less than 3 months: -20 to 40°C
Battery life: Approx. 500 recharge cycles
Display
LCD monitor: TFT 4.95 inches with touch screen
Magnification: Approx. 132 to 300x
Illumination
V-grooves: LED lamp
Interface
PC: USB2.0 Mini B type
External LED lamp: USB2.0 A type, Approx. DC5V, 500mA
Wireless: Bluetooth 5.2
Data storage
Splice mode: 100 splice modes
Heat mode: 30 heat modes
Splice result: 20,000 splices
Splice image: 100 images
Screw hole for tripod: 1/4-20UNC
Other features
Automatic functions
Fusion control
Blade management and control
Reference guide: PDF file stored in splicer
Sheath clamp
Open with/without Wind Protector
Close with fiber setting
Easy sleeve positioning clamp
Electrode: Replaceable without tool
