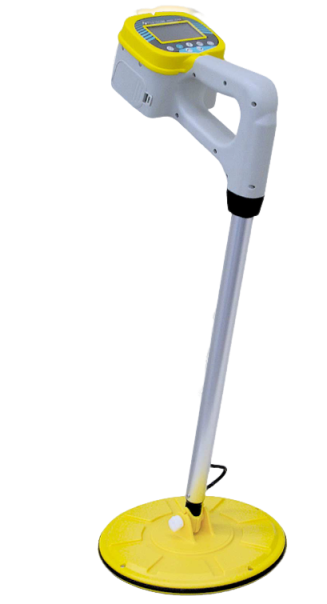

FUJI TECOM MLD-10W ເຄື່ອງໝາຍສະຖານທີ່ (147.6kHz (CH-1), 196.9kHz (CH-2))

Frequency: 147.6kHz(Ch-1), 196.9kHz(Ch-2)

Antenna: Air-core Loop Antenna

Level Indication: Level Bar & Signal Sound

Power Supply: DC6V (AA 6)

Battery Life: Approx. 8 hours

Operation Temperature: -20 to 50

Accuracy(Location): Within 20cm (0~1.5m)

Accuracy(Depth): Within 15cm (0~0.5m)

: Within 25cm (0.51~1.0m)

Locatable Depth: Max. 1.5m (approx.)

Measurable Depth: Max. 1.0m (approx.)

Dimensions and Weight

Amplifier: 130mm 111mm 105mm

Antenna:φ274 31mm

Length: 734mm

Weight: Approx. 1.8kg (incl. batteries)

Applications

Fuji Marker locator saves you time by locating buried utilities in combination with the buried electronic marker.

The Marker enables simple location of buried utilities even in highly congested environments, providing exact location through audible and visual meter display of the locator MLD-10W/G.

Use Marker to locate buried joints, branch point, pipe ends, cable path and fiber optic cables. We are offering 5 frequencies and 5 colors for each utility.

Datasheet
