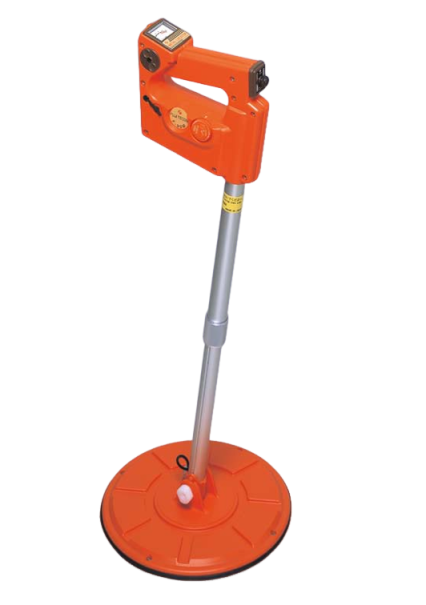

FUJI TECOM F-90M ສະຖານທີ່ໂລຫະ (9.7 kHz)

Frequency: 9.7 kHz

Power & Sensitivity Switch: Battery check and Sensitivity adjustment

Indicator: Speaker and Indicator meter

Power: Type AA (LR6) dry battery 4pcs.(6V)

Battery Life: 40 hours on manganese alkaline cells

Operating temperature: 0 ~ + 60

Detectable Depth: 40cm (15 3/4") for a steel disc 10cm (3.9") dia.

60cm (23 1/2") for a steel disc 18cm (7") dia.

Weight: 1.7kg (3.7lbs.)

Dimensions

Amplifier: 170mm 195mm 60mm (6.7" 7.7" 2.4")

Antenna: 270mm 25mm (10.6" dia. 9")

Applications

The F-90M is the professional's choice for locating buried valve boxes and covers.

The F-90M detects buried metallic objects such as meter boxes, valve boxes, and manhole covers.

Ferrous metal objects can be detected more than a foot beneath the surface, and their presences are indicated by both an addible tone and meter deflection.
