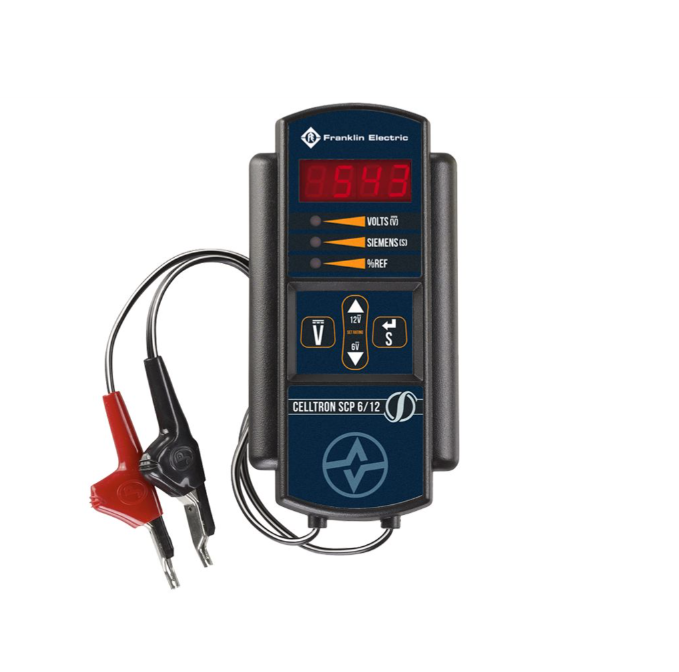

Franklingrid SCP-100 ຕົວທົດສອບແບດເຕີຣີ (6.0 - 14.0 VDC, 20 - 1200 Mhos/Siemens)

ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

Voltage Range: 6.0 to 14.0 VDC

Conductance Range: 20 - 1200 Mhos/Siemens

Battery Capacity Range: 1.2 Ah to 55 Ah

Operating Temperature: 0 to 120 degree F) -18 to 50 degree C

Storage Temperature: -4 to 180°F (-20 to 82°C)

Dimensions: 7.5" X 3.5" X 2.0" (230 mm X 102 mm X 65 mm)

Weight: 1 lb (427 g)

Applications: Sealed lead-acid batteries for security systems, emergency lighting, mobility vehicles, uninterruptible power supplies, and more

Power Requirements: Powered by the battery under test

Display: 4 Position LED alpha-numeric readout, LED mode indication

Interface Operations: Patent pending clips designed for a wide range of applications

Housing Material: Acid resistant ABS plastic
