Franklingrid CTU-6000 KIT ຊຸດວິເຄາະແບດເຕີຣີ (1.5 - 20.0 VDC; 100 - 19,990 Siemens)

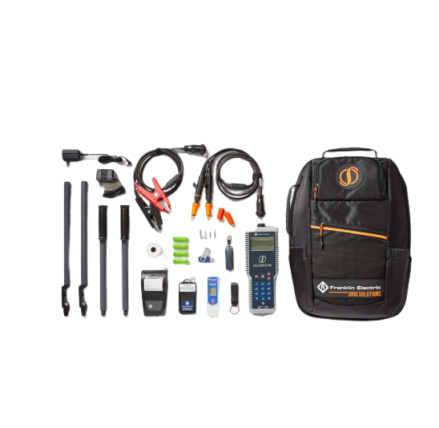

Included in the Kit:
CELLTRON Ultra battery analyzer
Test probes
Probe extenders
Test clamps
Temperature sensor
Portable printer
CELLTRAQ Express battery asset management software
Voltage Range: 1.5 - 20.0 Volts DC
Conductance Range: 100 - 19,990 Siemens
Accuracy: + 2% across test range
Voltmeter Resolution: 5mV
Storage Temperature: -4 to 180°F (-20 to 82°C)
Environmental Operating Range: 0 to +104°F (0 to +40°C); 95% relative humidity non-condensing
Analyzer Dimensions: 11in x 4in x 3in (279mm x 105mm x 80mm)
Analyzer Weight: 2.6 lb (1 Kg)
Case Dimensions: 19in x 15.5in x 7in (485mm x 395mm x 180mm)
Shipping Weight: 11 lb (5 Kg)
Applications: Tests individual lead acid cells or monoblocs (up to 16 Volts) in any common configuration, approximately 10-6000 Ah
Test Data Storage: 500 string locations of 480 test results per string stored internally
Calibration: Franklin Electric Grid Solutions will work with each customer to establish a regular calibration program if it is required by their quality or other management systems
Power Requirements: 9.6V, 1600mAH, NiMH; Internal swappable battery & charger
LCD - FSTN Display:
+ 2.619 in x 1.309 in
+ 128 x 64 pixels
+ 40 degree viewing angle
+ Contrast ratio 8
+ Green LED backlight
Data Transfer:
+ Infra-red HP protocol
+ Infra-red
+ Half-duplex IRDA protocol
+ RS-232 printer
+ Secure digital card
Over Voltage Protection: Auto-reset disconnect, Reverse polarity protected
Housing Material: Acid-resistant ABS plastic; Santoprene™ overmold
